High standard hydraulic screw thread rolling machine for sale

1 surface roughness less than turning,milling and grinding;
2. Processed products than two-axis rolling machine products processed verticality,concentricity,etc. better,higher precision;
3. Material utilization is high;productivity is doubled from cutting,and it is easy to automate;

Condition:
Applicatio:
After-sales Service :
Thread Pitch:
Certificatio:
Quantity:
  • Z28-30
  • Greatcity
  • 8462419000


What is the hydraulic thread rolling machine?

Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..

Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.


SPECIFICATIONS   FOR GREATCITY HYDRAULIC THREAD ROLLING MACHINE ZP28-30-

Diameter for the threads rolled

φ4-42/mm

Range of pitch rolled

0.7-3.5P

Length of thread rolled

In feed or Thru feed

Spindle speed

36/47/60/78rpm

Outside diameter of rolling die

φ135mm-φ170mm

Inside diameter of rolling die(keyway)

φ54mm

Thickness of rolling die

110mm

Min.center distance between die spindles

120mm

Max.center distance between die spindles

240mm

Output(pcs/min)

5-35 pcs/min

Machine motor

5.5HP

Hydraulic motor

3HP

The highest feed pressure

15T

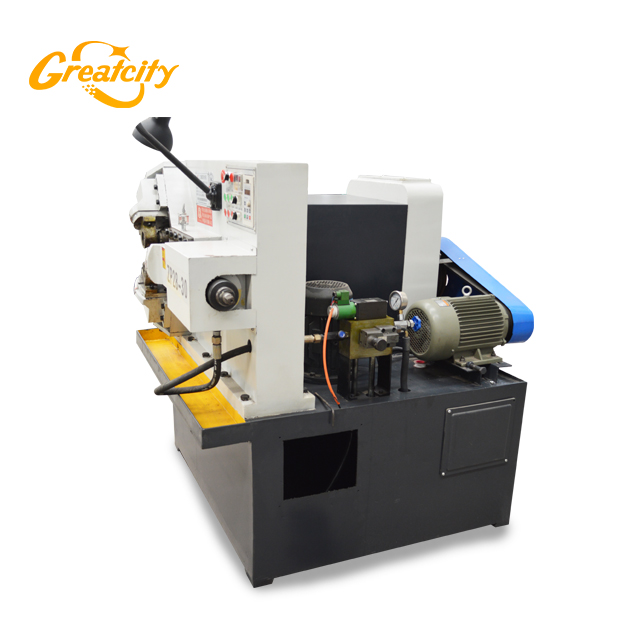

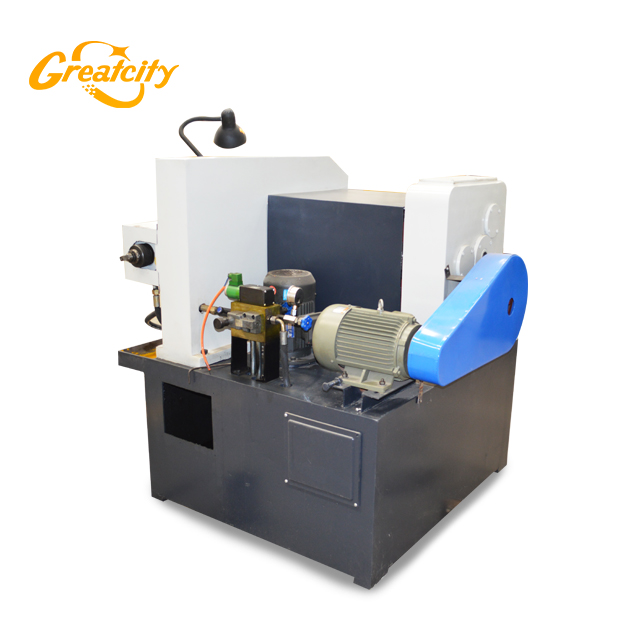

Z28-30 hydraulic thread rolling machine images show :

hydraulic thread rolling machine (2)

hydraulic thread rolling machine (3)

hydraulic thread rolling machine (4)

hydraulic thread rolling machine (5)

hydraulic thread rolling machine (6)

hydraulic thread rolling machine (7)

hydraulic thread rolling machine (8)

hydraulic thread rolling machine (1)

if any hydraulic thread rolling machine question ,feel free to contact me !
