Many models chinese thread rolling machine manufacturer we have, Z28-215, Z28-150B, Z28-80B, Z28-50, Z28-40C, Z28-185, and so on.
Pls provide us the diameter and the type of your raw material, then i will recommed you the best model fit for you.
The thread rolling scope:
Z28-215: 8mm-100mm
Z28-150B: 5mm-56mm
Z28-80B: 5mm-48mm
Z28-50: 6mm-42mm
Z28-40C: 5mm-36mm
Z28-200: 5mm-65mm

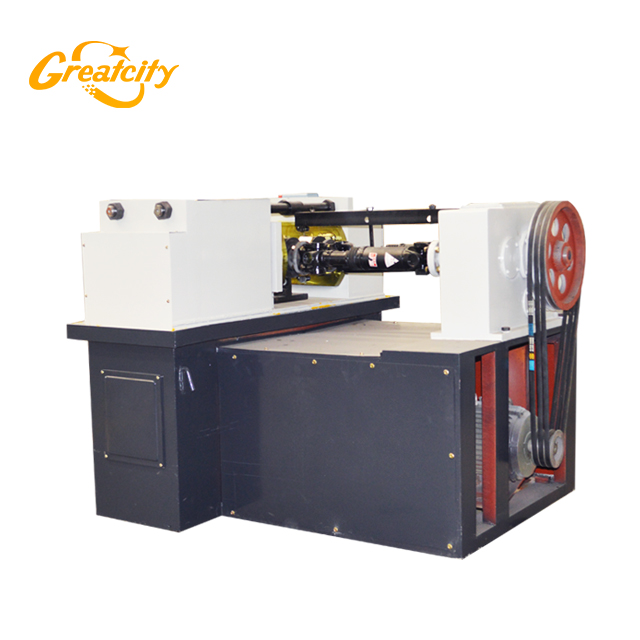

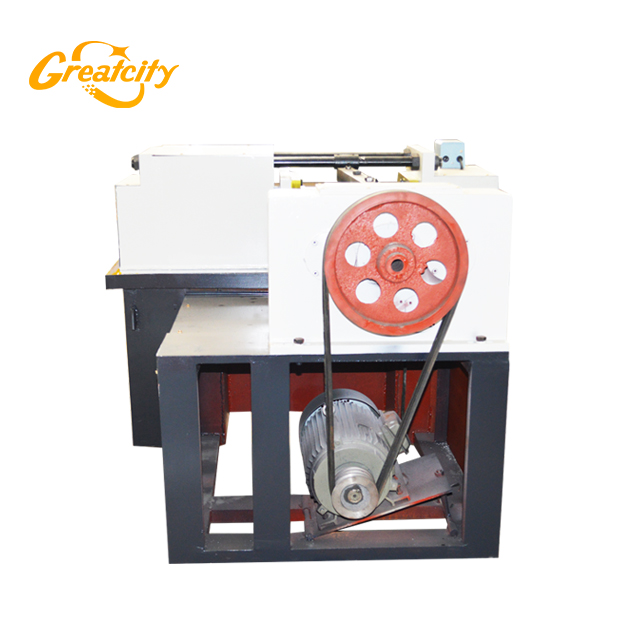

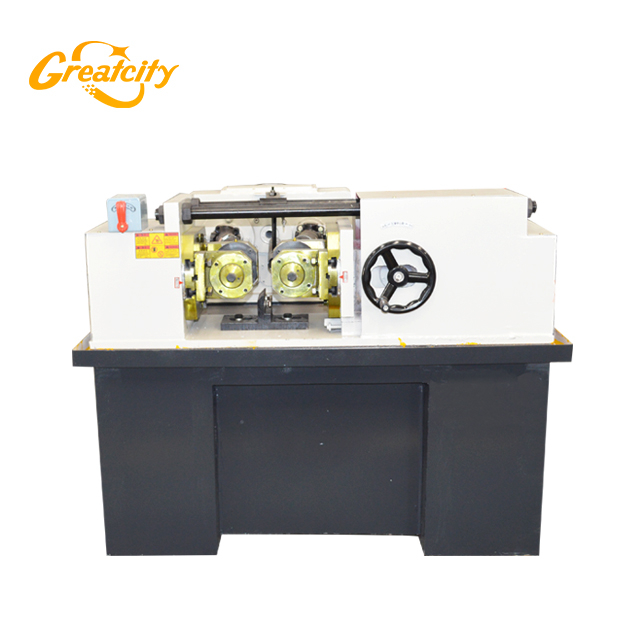

SPECIFICATIONS FOR GREATCITY chinese thread rolling machine manufacturer ZP28-40 | ||||
Rolled thread range | mm | Max diameter | Φ5-36 | |
mm | Pitch of screw | 0.5-4 | ||
Hobbing wheel range | mm | Outside dia | Φ120--φ170 | |
mm | Hole dia | Φ54 | ||
mm | Max width | 100 | ||
Main axis obliquity | +-5angle | |||
Maximum rolling pressure | kn | 120 | ||
Main axis revolution(exchange gears) | rpm | 37,46,63,79 | ||
Main axis transmission power | kw | 5.5 | ||
Hydraulic transmission power | kw | 2.2 | ||
machine weight | kg | 1100+-50 | ||
Dimensions | mm | 1350*1210*1350 |
Z28-4C chinese thread rolling machine manufacturer video on youtube
https://www.youtube.com/watch?v=haohXOlrokk
