Z28-315
Greatcity
8462419000
1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.
2.pee wee thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This threaded bold machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
GREATCITY brand thread rolling machine price can rolling many threads.

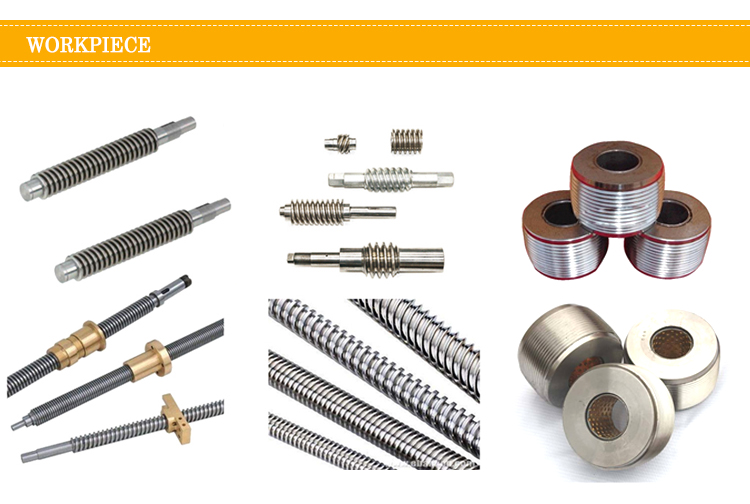

The below photos are parts of samples.
And can customized any type thread & full thread roller and partical thread roller.
For example:
1 1/2 "----- 8 UN
2" ---- 4.5 UNC
3/4 " --- 10UNC
1 1-2 -----6 UNC
3/4" ---- 16 UNF
M24*3
M30*3.5
M36*4
M42*4.5
3/4" -- 10 UNC
1"---8 UNC
1 1/4" --7 UNC
1 1/2" --6 UNC
Z28-315 model rebar pee wee thread rolling machine technical parameters:
| Model | Z28-315 |
| Object part for rolling diameter | Ø8-110mm |
| Object part for rolling thread range | 0.5-8mm |
| Inner dia. of roller wheels | Ø75mm |
| Width of both wheels | 50-120mm |
| Dia. of two roller wheels | Ø170-220mm |
| Max feeding power | 300Kn |
Hydraulic auto-feeding time regulation scope | 0.1-99.9 |
Mechanical transmission motor | 15kw/1450r/min |
Hydraulic cease time regulation scope | 5.5kw/1450r/min |
Cooling electric pump | 120w |
Outer sizes | 2150*1800*1600mm |
Weight | 4500kg |
Z28-315 model pee wee thread rolling machine detailed show :
https://www.youtube.com/watch?v=D_t1gnynkCs
Xingtai Judu Technology Co.,Ltd is located in the historical industrial zone, Hebei province. Founded in 1999, we are a professional manufacturer of series of CNC stirrup bending machine and pee wee thread rolling machine . For twenty years in development, our company has always been adhering to credit the first best quality in after sale service, innovation, self-improvement, adhere an independent intellectual property right as the core of scientific and technological innovation. The current steel hoop bending machine and horizontal lathes for the company's main product are sold throughout the country, some products exported to Asia, Africa, and other countries and regions, we are abide by integrity and innovation, entrepreneurial spirit, relying on leading research and development capabilities efficient manufacturing, stable quality and good service to meet the needs of our customers at home and abroad, the company has now passed the ISO9001:2000 international quality management system certification.
"Greatcity" trademark has been identified as an unique brand name product that got the honorary title among many.
Within more than 20 years of development besides struggles, GreatCity is still keeping up its effort to maintain a brilliant business success in whole over the world due to its hardworking, courage and the will to improve its creation for customer satisfaction and maintain the reputation to be the best Chinese machinery manufacturer.
1. Do you have any warranty?
Yes, we have. Two years warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What is the Lead time of automatic pee wee thread rolling machine ?
Goods can be sent within 45 days according to our production arrangement .
4. What kinds of payment terms are acceptable to you ?
We usually accept L/C at sight and T/T ( 50% in advance and 50% before shipment ) .
5. Do you have customers in our country?
We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy.
