| Product name: | |
|---|---|
| Type: | |
| Power: | |
| Weight: | |
| wire size: | |
| Quantity: | |
JD-QZ6
Greatcity
8462299000

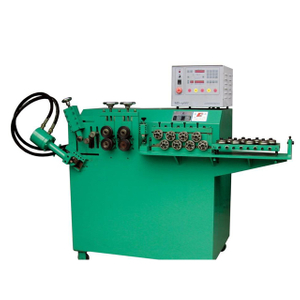

wire ring making machine performance and characteristics (overview)
1. Fully automatic spiral bar forming machine is designed and produced by our company independently. It adopts single-chip microcomputer integrated control, arbitrary adjustment parameters, multiple parameter storage functions, digital display, saving time, convenient management, and improving production efficiency. Automatic PLC-coded NC control system, users only need to enter the spiral rib spacing and meters on the NC-coded display).
2. The key parts of the machine adopt imported components to ensure the service life of the machine. The encoder has a very small error in meter counting and accurate positioning.
3. This machine is stable, fast and accurate, and can be fast. Slow, backwards characteristics.
Stable: All with hydraulic transmission and cycloid motor, no gear assist is required, which can reduce gear backlash
Fast: 20-40 meters per minute
Accuracy: rounding error ± 0.50MM
4. This machine is a box-type structure with good rigidity and flexible and reliable hydraulic transmission.
5. The control box is equipped with functions such as fast feed, automatic cut-off, manual cut-off, automatic stop, and start-up.
wire ring making machine Excellent materials:
The wire feeding wheel, straightening wheel and forming wheel of the servo loop machine are made of high-quality alloy steel, and through vacuum heat treatment, it has high abrasion resistance and long service life. , Its comprehensive mechanical properties are high, the gears are all forged billets, after quenching and tempering and high frequency hardening of the tooth surface, the hardness is as high as HRC55-58.
wire ring making machine technical specification:
| Model | JD-QZ6 | JD-QZ8 | JD-KCM40 | JD-KCM60 |
| Wire size | 2-6mm | 3-8mm | 40T press | 63t press |
| Ring inner dia | 20-70mm | 20-130mm | 20-70mm | 20-70mm |
| Production capacity/minute | 60pcs | 40-50pcs | 60pcs | 60pcs |
| Motor power | 1.1kw | 1.5kw | 1.1kw | 1.1kw |
| Dimensions(L*W*H) | 1500*630*1530 | 1630*700*1680 | 1460*1350*2150 | 1460*1350*2350 |
| Weight | 500kg | 550kg | 1800kg | 2100kg |
wire ring making machine video on youtube
Why is the wire ring making machine so expensive? Instead, it says that the cost is halved and the cost performance is high? Because the speed of the servo circular machine is nearly doubled compared with the hydraulic circular machine, which is equivalent to the top two, and saves a labor cost, the electricity is also saved in half. As the boss, you will count this account. In the high season, do you want to work 24 hours a day in the workshop because of insufficient productivity? In fact, people need to rest, and the machine also needs to rest. The servo circular machine is one set, so that you do n’t have to worry about being unable to keep up with the progress Save time, power and money
wire ring making machine Packaging:
Stable wooden package protects machine from strike and damage.
Wound plastic film keeps machine out of damp and corrosion.
Fumigation-free package helps the smooth customs clearance.
The big size machine will be fixed in container without package.
Shipping:
For LCL, we cooperated with reputable logistics team to send machine to sea port speedily and safely.
For FCL, we get the container and do container loading by our skillful workers carefully.
For forwarders, we have professional and long-term cooperated forwarders who can handle the shipment smoothly. Also we would like to have seamless cooperation with your forwarder at your convenience.
