Application industry

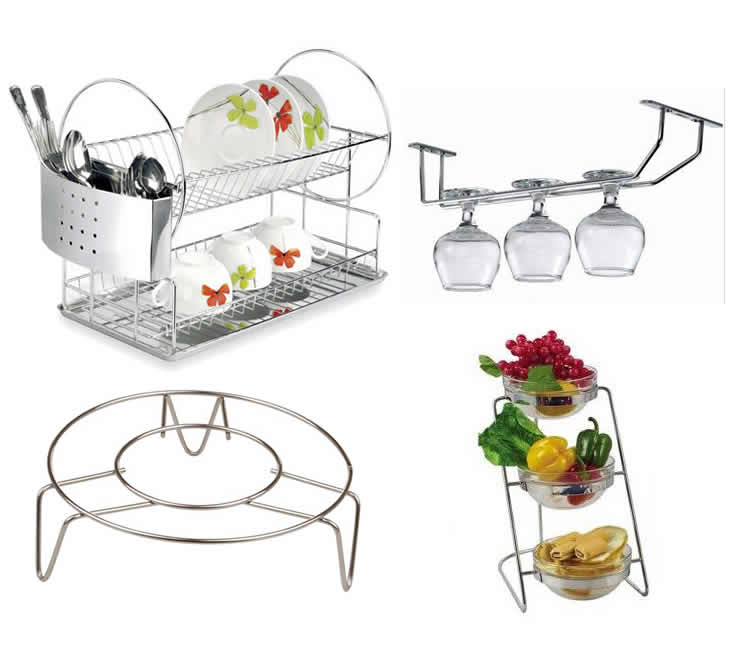

Stainless steel, iron wire, square or flat iron wire bending machine.
Work with wire from 2-14mm diameter.

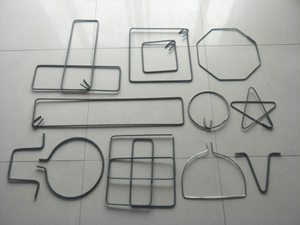

Can make different shape and design according to your need.
Fast speed, stable and automatic.
Cnc Wire Stirrup Bending Machine Sale technical specification :
Model | ZD-2D-206 |
number of axles | 3 |
processing wire dameter range | 2—6mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 100 |
Servo motor power of feeding shaft(kW) | 1.5 |
Power of Servomotor for Cutter Shaft(kW) | 1.5 |
Power of Folded Axis Servomotor(kW) | 1.5 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 25-30pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 600 |
Dimension (length*width*height mm) | 2400×1000×1400 |
Cnc Wire Stirrup Bending Machine Sale Video link on youtube:
https://www.youtube.com/watch?v=7aDpX4i4oNU
https://www.youtube.com/watch?v=eSYLgZhrblA
Advantages of Cnc Wire Stirrup Bending Machine Sale :
1. Automatic straightening, automatic cutting, automatic push bending, non-interference, one-time forming, unmanned operation, the efficiency is 4-5 times of the traditional model;
2. The internal mold and external mold can rotate and lift, the programming accuracy of each axis is 0.1 unit, the control accuracy is 0.01 unit, and the operation is simple and easy to learn;
3. Adopt servo motor control as a whole, eliminate backward hydraulic system, prevent noise and oil pollution, and ensure 100% of the machine's
Quality and stability;
Packing of Cnc Wire Stirrup Bending Machine Sale
1. 1 pc wood cartton ,carton weight 1000kg,dimension:2800mm*850mm*1500mm.
2. The packing can do as customers' requirement.
Shipping
By sea to your nearest port;
By air to your nearest airport;
By express (DHL,UPS,FEDEX,TNT,EMS)to your door;
Ship to the warehouse in China according to the customers' requirement
All inquiries replied after 12 hours by email or phone call
For more details for Cnc Wire Stirrup Bending Machine Sale , some expert can provide information in different language (Chinese, French, Spanish, Arabic, English)
Available for any contact in different social net work.
Any visit to our factory authorized.
Service at customer request.
