| Diameter of wire: | |
|---|---|
| Machine Type: | |
| Material: | |
| Applicable wire: | |
| Control system: | |
| Quantity: | |
1.Adopt dedicated computer system by Taiwan 8mm wire bending machine and imported high-density servo motor.
2.Easy to operate, accurate positioning and can store hundreds of different processing procedure, shorten the time for the next time debugging
3.According to the situation on the screen, can modify Angle at any time.
4.When there is no line, broken line or tangled lines, automatic stop designed. And the line automatic acceleration make production easier and effective.
5.Applicable to products: car seat suspension spring, visor skeleton, car lock rod, wire arts and crafts, clean tableware bracket, storage cage, shopping carts, etc

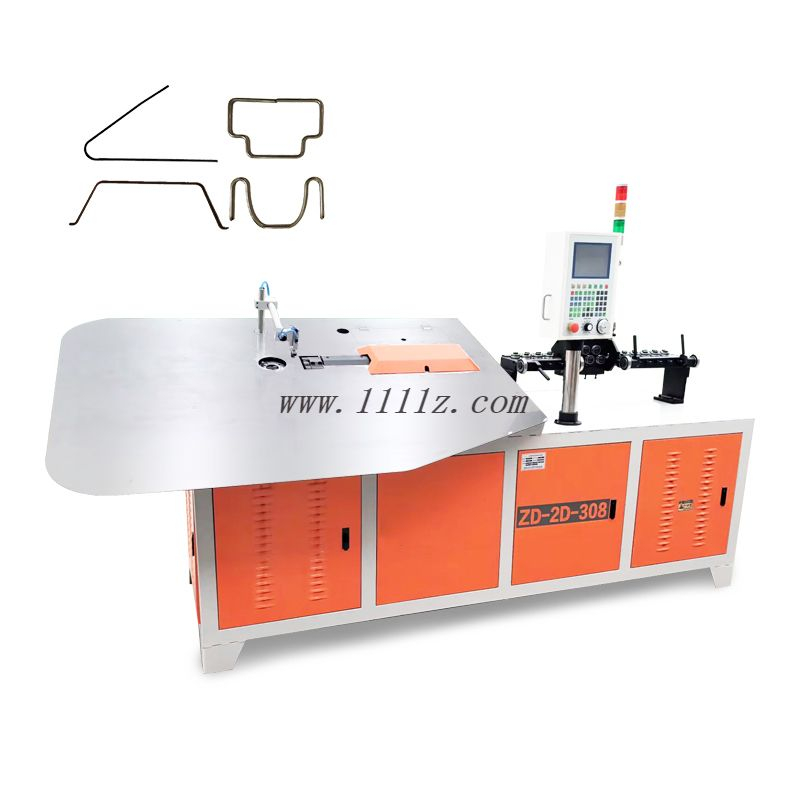

D-2D-308 model 8mm wire bending machine technical specification:
Model | ZD-2D-308 |
number of axles | 3 |
processing wire dameter range | 3—8mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 2.6 |
Power of Servomotor for Cutter Shaft(kW) | 2.0 |
Power of Folded Axis Servomotor(kW) | 2.0 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 800 |
Dimension (length*width*height mm) | 3000×1000×1400 |
8mm wire bending machine video link on youtube :
https://www.youtube.com/watch?v=7aDpX4i4oNU
https://www.youtube.com/watch?v=eSYLgZhrblA
1. Q: Are you a factory or trading company?
A: We have our own factory and have been over 10 years. Have rich experience in export
We have the improvement teams from design, manufacture....to installation, commissioning and staff training
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xingtai City, the capital of Hebei Province, 1.5 hours way by high-speed rail from Beijing to Xingtai
3. Q: How does your factory do regarding quality control?
A: We test our machine before shipping. We have CE certificate.
4. Q: What shape and size can the 8mm wire bending machine make?
A: It adopt aptitude control . Can processing many size and specification shape . For example :square , rectangle , rhombus ,polygon and so on .
5. Q:What is the Mode of transportation ?
A:LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air
6. Q:How should I do if meet some trouble while using?
A:we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
