Multi-language high speed hydraulic three shaft hollow steel bar thread rolling machine

Steel Bar Thread Rollling Machine is used to rolling 50-160mm straight thread, and inclined thread in cold state. It is easy operate, is good equipment for producing nonstandard screw thread and standard bolts.
Product name:
Name:
Spindle Speed:
0-20r/min:
Marketing Type:
Quantity:
  • Z28-T16
  • Greatcity

Multi-language high speed hydraulic three shaft  hollow steel bar thread rolling machine

Overview

Outline of Steel Rod Thread Rolling Machine :

 Steel Bar Thread Rollling Machine  is a multi-function cold extrusion machine. The machine  in its rolling pressure range of cold, the workpiece for thread, ruled, twill and other treatment; straight, helical and oblique spline gear rolling; straightening, reducing diameter, rolling and various forming rolling. The machine has a safe and reliable electro-hydraulic execution and control system. Each work cycle can be selected in manual, semi-automatic and automatic ways.

Steel Bar Thread Rollling Machine is an advanced non-cutting processing, can effectively improve the internal and surface quality of the workpiece.

When processed, the radial compression stress generated, can significantly improve the fatigue strength of the workpiece and the reverse strength. It is an efficient, energy saving, low consumption of the ideal process.



Technical data of  T16 model
1 Rolling diameter 50-160mm
2 Outer Diameter of rollers 230-270mm
3 Inner Diameter of rollers 75mm
4 Active power 22kw
5 Hydraulic power 7.5kw
6 Speed 0-20r/min
7 Dimension 43)0*2200*2300
8

Weight

11500kg




Product Description

ZP28-t16 model Steel Bar Thread Rollling Machine detailed show :

Thread rolling machine (2)Thread rolling machine (3)Thread rolling machine (4)

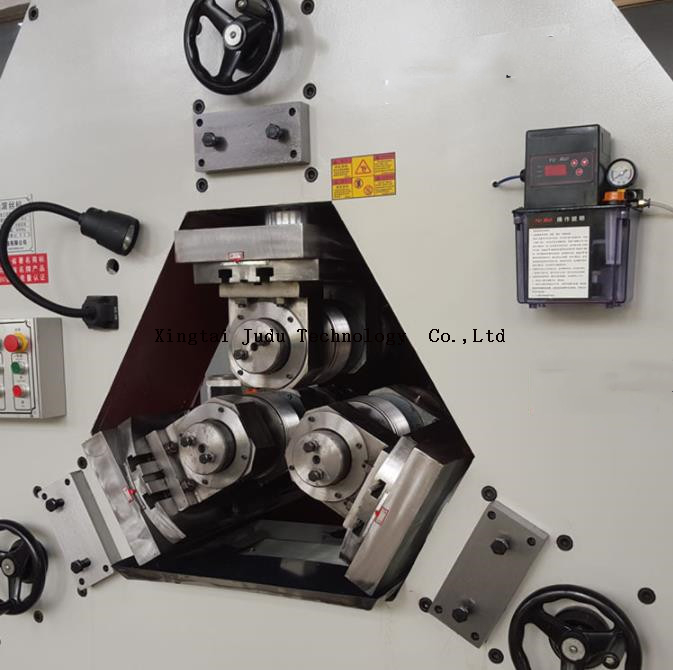

thread rolling machine (5)

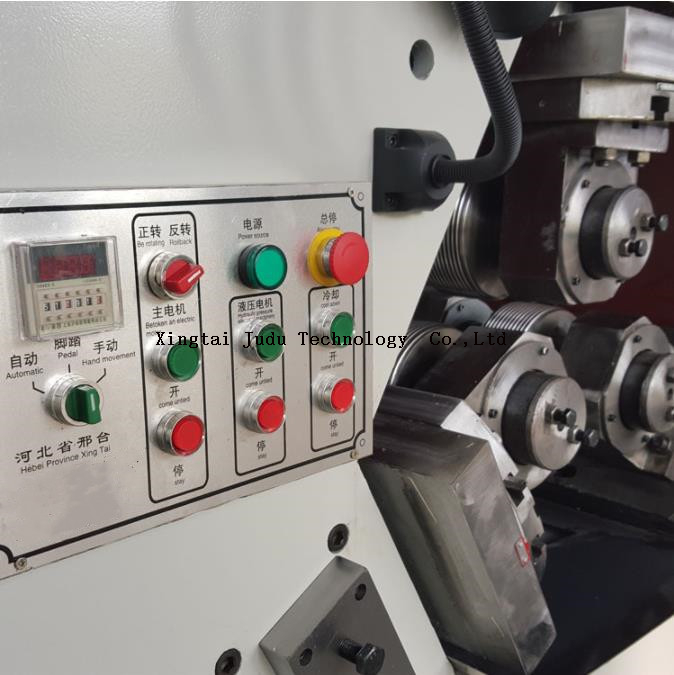

thread rolling machine (6)

thread thread rolling machine, (3)

thread thread rolling machine, (4)

Packaging & Shipping

Packaging information: standard export non-fumigation wooden packing for this product.you can choose by sea container or air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him in the first time.

Shipping  time:about15-20 days after receiving the deposit.


thread thread rolling machine, (1)

Our Services

1.If buyers visit our factory and check the machine, we will teach you how to install and use Steel Bar Thread Rollling Machine, and also train your workers/technician face to face.

2.Without visiting,we will send you user manual and video to teach you to install and operate.

3.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

Company Information

Xingtai Judu Technology Co.,LTD was founded in 1990,Specialized in machinery production & export of Steel Bar Thread Rollling Machine,has been in this field for more than 20 years.The Hydro construction machines,such as z28-65, z28-T16 are our advantages machine. These machines now export to all over the world such as Asia,Africa,South America,Australia and so on.

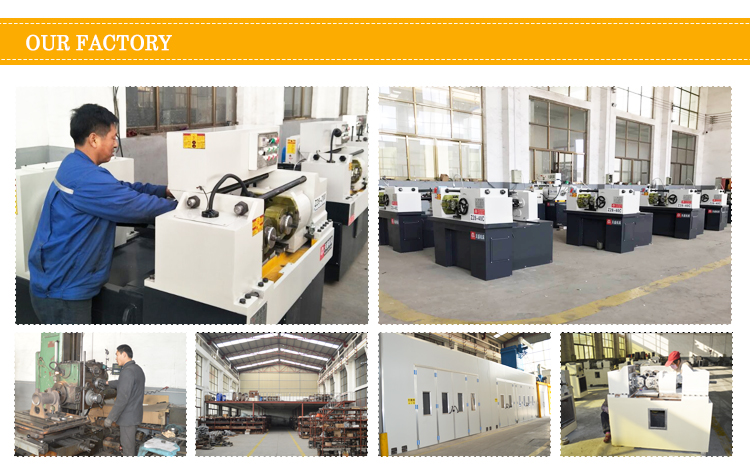

thread thread rolling machine, (5)

thread thread rolling machine, (6)

steel bar thread rolling machine

FAQ

Q1: What does your factory produce ?

A: We produce and export all kinds of Steel Bar Thread Rollling Machine
with butt welding. We also can design and develop automatic wire ring making machines with butt welding according to your requirements.


Q2: What about your standard delivery date ?

A: Usually 10-15 days.


Q3: Does your factory sale directly ?

A: Yes. Our factory sells directly and we have competitive price with high quality and
excellent after-sale service.

Our quality products have been export to many countries, such as Germany, Russia,
USA, Canada, Argentina, Peru, Turkey, , Brazil, Spain, South Asia and Middle
East countries.


Q4: Can you export machines by your factory?

A: Yes, we can.


Q5: Where are your factory?

A: Our factory is located in Xingtai City , Hebei Province,China.


Q6: Will you send engineer to help installing the machine?

A : Yes, if you need, we can send our engineer to go to your factory to help you install our machine, train the workers and make sure the welding machine running well before he leaves.


Q7: If the machine get damaged, what can I do ?

A: In the guarantee time (15 months) , we will send the spare parts to you for free and
provide the technical consultant for anytime. If more terrible, we can send our engineers
to your factory. We will provide same good after-sale service as the pre-sale service.
For any of your questions, we will reply within 12 hours.
