ZD-2D-308
Zhongde machinery
8463300000
The application of the fully automatic 2D CNC Wire bender is currently in the following five areas:
1.Auto parts: car seat skeleton, door lock lever, serpentine spring, including single snake and double snake, car cat head circlip, car seat belt circlip, car seat steel wire parts, motorcycle spare parts, bicycle Spare parts and baskets are more suitable for production with wire forming machines.
2.Daily hardware products: kitchen display racks, racks, egg beaters, cabinet pull baskets, refrigerator grids, racks inside the rack steel
Silk products, supermarket shopping baskets, carts, display pendants, etc.
3.Iron wire craft products, lighting line molding products, fishing gear accessories products, including wine racks, fruit pots inside KTV, Christmas.
A Kind of wire-formed gift is made of a flat or three-dimensional piece of wire or iron wire of various shapes.
4.The processing of various cages: pet cages, bird cages, dog cages, breeding cages, trap cages, etc.
5.Hangers, shoe hanging, curtain hooks, shelf hooks, display hooks and other hooks.

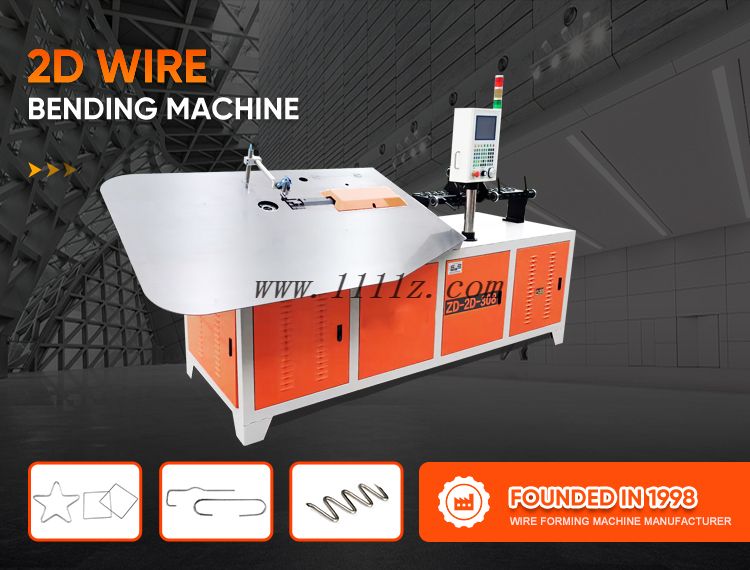

ZD-2D-308 model 2D CNC Wire bender technical specification:
Model | ZD-2D-308 |
number of axles | 3 |
processing wire dameter range | 3—8mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 2.6 |
Power of Servomotor for Cutter Shaft(kW) | 2.0 |
Power of Folded Axis Servomotor(kW) | 2.0 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 800 |
Dimension (length*width*height mm) | 3000×1000×1400 |
2D CNC Wire bender video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa
Main Features for cnc wire bender
1. A 2D CNC Wire bender. The angled parts cooperate with each other to produce different products. The commissioning time is short. For new products, only simple adjustments are needed. After commissioning, the products can be produced and the delivery speed can be improved.
2. The function of the transfer line is made by the rotation of the wire itself, which makes the production of multi-angled corners more convenient, faster and faster.
Advantages of automatic 2D CNC Wire bender
CNC metal bending machine is fully automatic production of a variety of 2D forming parts, no mold, as long as the parameters set in the electrical box can be bent out of various ideal 2D shape, line diameter range suitable for 2.0mm to 6.0mm.
Machine instead of manual, no need to adjust the material, no need to open mold can be produced. Whatever shape you need to bend, as long as it is on a plane, our machine can meet your needs.
Applicable to iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), bending, making square, round, hexagonal, ellipse with irregular shape and all kinds of plane buckle, all kinds of hooks and so on.
2D CNC Wire bender
Packing : standardn export seaworthy wooden case
Shipment: about 3-7 days after receipt of the deposit.
By sea to your nearest port;
By air to your nearest airport;
Ship to the warehouse in China according to the customers’ requirement
1.what is steel wire bending machine Packaging?
Automatic 2D CNC Wire bender Free fumigation safe Wood case package
2.what is MOQ?
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
3.can we do OEM and ODM?
Can
changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is your warranty?
Warranty 1 year
5.what time for delivery?
3 days for our own design.(motor:380v 50hz 3phases)
10 days for cusmoized model.
6.How do payment?
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable )
100%TT in advance (specially for air shipment or small amount)
