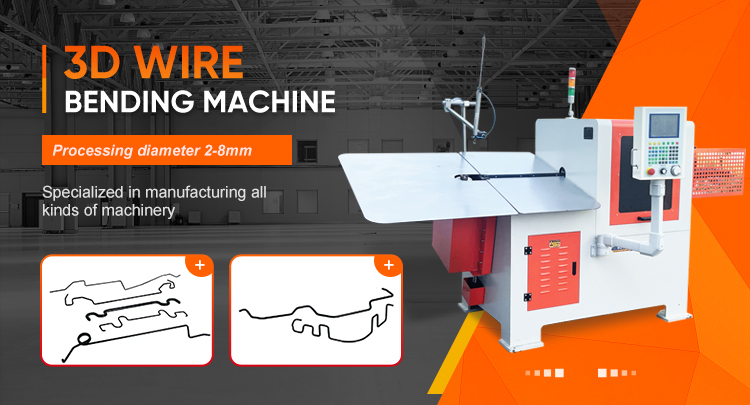

Quality Assurance Mechanical Cnc Steel Wire Forming Bending Machine Automatic

1. The error of the full servo motor is smaller, the bending efficiency is higher, and the error is less than that of the hydraulic machine.
2, CNC operation is more convenient than the same PLC product operation, easy to learn, generally have a primary school education within half an hour to edit the simple program.
3. Since all servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution will not be caused by oil pollution.

After-sales Service :
Raw Material:
Product:
Extra Services:
Control system::
Quantity:
  • JD-3D-80
  • Greatcity
  • 8463300000

Advantages & Feature:

 cnc wire forming machine  is to produce kinds of 2D and 3D wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki Servo motorand screen display with Taiwan controller.

3-4 pairs feeding roller, feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotatings more fast and light, turning angle is more precise and stable.

Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer.


Application Field:

1) Auto Industryarea

2) Netal wire industry

3) Furniture and kitchen

5) Hardware industry

6) Mattress, sofa spring srea

7) Architecture area

8) Hardware Artcrafe


Pls contact freely, i will show more testing video wire bending forming machine as your request.


 cnc wire forming machine  technical specification


model

Configuration



1.5-6mm Wire forming machine

4-12mm Wire forming machine

Electrical voltage

Three-phase four-wire + grounding wire

Three-phase four-wire + grounding wire

Straightening rounds

8 group

8 group

Number of wire feed wheels

3 group

4 group

Servo motor total power

14KW

17.5KW

Cutter cylinder

7 Iron wire

11 Iron wire

Oil pressure range

0.3~0.6mpa

0.3~1.0mpa

Hydraulic oil model

46#68#

46#68#

Applicable wire

Round wire, flat wire, square wire (for any material wire)

Round wire, flat wire, square wire (for any material wire)

Applicable wire range

1.5~6mm Iron wire

4~12mm Iron wire

physical dimension

3000*1200*1950mm

3000*1000*1950mm

Circumference range

unlimited

unlimited

Storage

100 Group data,1000 Action

100 Group data,1000 Action

Wire feed speed

80m/min

60m/min

minimum bending speed

600 turn /min,Angle ±180°

600turn/min,angle ±180°

Direction of action

Internal mold - up / down movement, outer mold - up / down movement, 360 ° forward direction

Internal mold - up / down movement, outer mold - up / down movement, 360 ° forward direction

effectiveness

15-30/min (as in the 200*200 box)

10-20/min (as in the 200*200 box)

Bending accuracy

±0.5mm

±0.5mm

Wire feeding accuracy

±0.2mm

±0.2mm

Hydraulic system

Pressure regulating valve

Have

Have

Pressure relief valve

Have

Have

The electromagnetic valve

See

2

4

Pressure gauge

1

1

Oil circuit substrate

1

1

Cooling pump

Have

Have

server system

minimum torque

50  m

80  m

minimum bend

15  m

30  m

Control panel

Touch screen

Touch screen

System control board

Yaqi

Yaqi

Head system

Special customization



performance:

The mechanical action of the machine is controlled by the microcomputer to bend the bending speed of the program. The various commands issued are used to form various models and different specifications. The automatic control of the automatic feeding of the action control is straight and broken, and the bending is formed and the head is turned. Welding, stamping, combining various shapes with up to 500 motion settings


 cnc wire forming machine video on youtube :

https://youtu.be/1fV_j7FD7NY

https://www.youtube.com/watch?v=6Drg-Kn1G3Q

wire bending machine (4)


wire bending machine (6)

wire bending machine (7)

3D wire bending machine _06 (7)


1. cnc wire forming machine With straightening, cutting,(no interference) with bending, one-time forming, 5 times more efficient than traditional models

2. Wire Bending Machine Design concept: replace the manual with the machine, no need to straighten equipment, no need to open the mold to produce. What shape the customer needs to bend, as long as it is on a flat surface, our machines can meet all the requirements.

3.Wire Bending Machine Applicable to iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), curved square, round, hexagonal, elliptical and other irregular shapes and various flat buckles, all kinds of hooks.

4. Wire Bending Machine Mainly for car seat skeleton, sun visor skeleton, square snake spring, pet cage breeding cage, bicycle basket, motorcycle accessories, garden garden flower stand, wire crafts, iron wire bathroom kitchen supplies, all kinds of wire forming design, with High processing capacity and high processing speed and precision.
