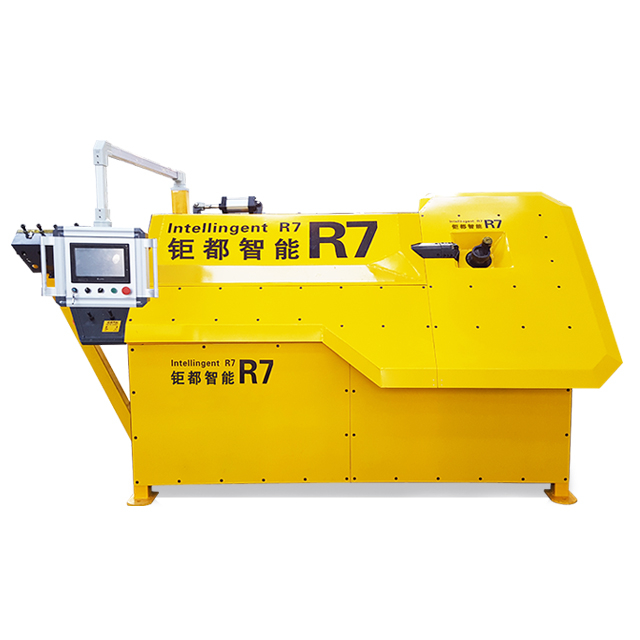

Stable process assured precision automatic cnc steel wire bending machine

1.Bending and shearing mechanism: driven by imported servo motor, the bent arm can rotate and flex at high speed. The shearing mechanism completes the shearing action at high speed to ensure the bending accuracy of the steel bar.
2.Control system: This machine adopts foreign mature control system, high reliability. The control system has the function of fault identification and alarm.

Power:
Certification:
Scope:
Traction speed:
Application:
Quantity:
  • R7
  • Greatcity
  • 8462219000

Product Application

The automatic cnc steel wire bending machine uses CNC servo control system, can be done automatically reinforced straightening, cut to length, bending hoop, cutting and other processes, the Maximum diameter of 14mm can bend steel ,continuous production of any planar shape of products, widely used in construction, a large steel plant and other fields, further equipment since production improved after a few more perfect products and better meet the actual needs of steel processing


Main Features

 1.The automatic cnc steel wire bending machine  Integration automatic feed high precision wire structure

2. CNC control system, high precision, small error
3. The belt conveying means, failure rate, low maintenance costs
4. With two-way bend function, process a variety of shaped pieces
5. With large storage, can be processed nearly 500 different size artifacts
6. Double roller sync wire feed units, wire feed is simpleeasy to operate, easy to learn
7. Works bevel design, not random wire straightening high efficiency
R7 model automatic cnc steel wire bending machine  technical specifications:

MODEL

R7

process diameter of single rebar

4-10mm

process diameter of double rebar

4-8mm

max bending angle

180

max towing speed

60m/min

max bending speed

800

length accuracy

1mm

angular accuracy

1

processing quantity

2

power

21kw

steel processing shape

150type

working temperature

-5-40

weight

1980kg

dimension

3300*1000*1980mm


automatic cnc steel wire bending machine video link on youtube :
https://www.youtube.com/watch?v=npwgnHDCwX4&t=3s

R7弯箍机_01


steel bar bending machine _06 (7)

steel bar bending machine _06 (8)

steel bar bending machine _06 (9)

steel bar bending machine _06 (10)







steel bar bending machine _06 (1)

1. What is the voltage/phase for this automatic cnc steel wire bending machine  ?

220V 50Hz/single phase ,380V 50Hz/three phase ,

also can made as the clients’ need



2. Can you make the logo or company name on the products or package?

Sure. customer's  logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.



3.what is your warranty?

Warranty 1 year



4.what time for delivery?
3 days for our own design.(motor:380v 50hz 3phases)
10 days for cusmoized model.



5. How should I do if meet some trouble while using?

we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.
