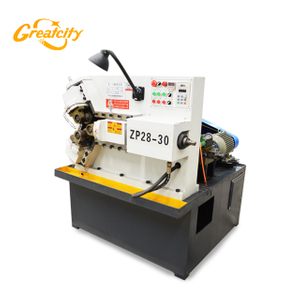

Steel rod rolling machine thread /automatic threading rolling screw making machine

1.rolling machine thread system is controlled by PLC numerical control system. All the control parts are 24V safety circuit, and also equipped with motor and power conflict protection system to ensure the safety and stability of man-machine operation.
2. The thread rolling machine for steel bar is equipped with manual, semi-automatic and automatic three working modes, which can adjust the interval time and rolling time as required.

Condition:
Application:
Power:
Product name:
Production Capacity:
Quantity:
  • Z28-200
  • Greatcity
  • 8462419000

Product Application

Mainly used for all kinds of external thread, including the common thread, trapezoidal thread and modulus thread. It also can do the rolling process, forming, slidabrading, knurling etc..

Apply for all kinds of carbon steel, alloy steel and non-ferrous metals, the elongation is more than 10%, the compressive strength is less than 100 KGF/m m2.



rolling machine thread can equipped the auto feeding and loading machine. pls inquiry for details.

360截图20191113155028440



SPECIFICATIONS FOR GREATCITY rolling machine thread  ZP28-200
Rolled thread range
mm
Φ5-65
Hobbing wheel range
mm
outside dia:Φ120-170 hole dia:Φ75
Max width:100
Maximum rolling pressure
kn
200
Main axis
.

Obiquity +5
Hydraulic auto feeding time regulation range
s
0.1-99.9
Cease time regulation range
s
0.1-99.9
sMain axis transmission power
kw
11kw-4
Hydraulic transmission power
kw
2.2
machine weight
kg
2800kg
Dimensions
mm
2500*1450*1650

threading machine rolling  video link on youtube :

Pre-sale Service

1.Supply item design,process design.

2.Help you to chose the fitest machine.

3.Making the machine according to your requirement.

Sale Service

1.Acceptance equipment together with you .

2.Help you to make the method statement and the details of the process.

After Service

1.Guarantee for a year.

2.Quality problem,we will sent you the accessories.

3.Free repair whole using life(without the freight and accessories charge).

rebar thread rolling machine (5)

rebar thread rolling machine (1)

rebar thread rolling machine (2)

rebar thread rolling machine (3)

1, Q: How about the after service?

A: We have a strong team, special for after service. We can arrange engineers to do service for you.



2, Q: Are you factory or trading company?

A: We are a factory in this field nearly 15 years



3, Q: Where is your factory located? How can I visit there?

A:Our factory is located in Xingtai City. Hebei province. You can fly to zhengding airport and or by high-speed train directly. I will pick you up .



4, Q:How does your factory do regarding quality control?

A:Quality is priority. We always attach great importance to quality controlling from the beginning.



5, Q: why choose GREATCITY rolling machine thread?

A: We are one of leader in this field(in China). Our quality products and service have enabled us to expand our market from china to more than 60 countries.



rebar thread rolling machine (4)

Packaging information: standard export non-fumigation wooden packing for  threading machine rolling .you can choose by sea container or air. We have our own farwarder. We can check the delivery information timely. You can also use forwarder by yours. We will contact with him in the first time.

Shipping  time:within 3-5  days after receiving the deposi

杨静名片(1)

If Any questions or other requirements for threading machine rolling,welcome to contact me at any time!
