ZD-RR-Q
Greatcity

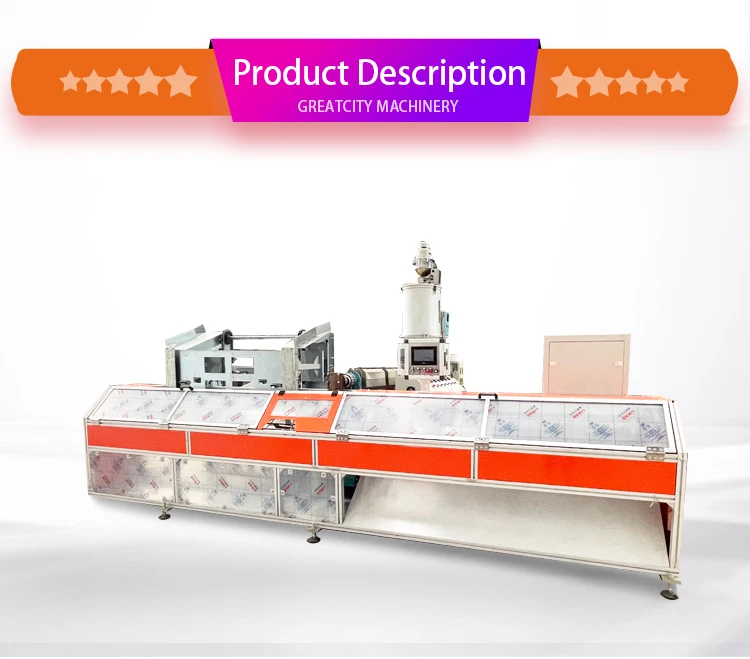

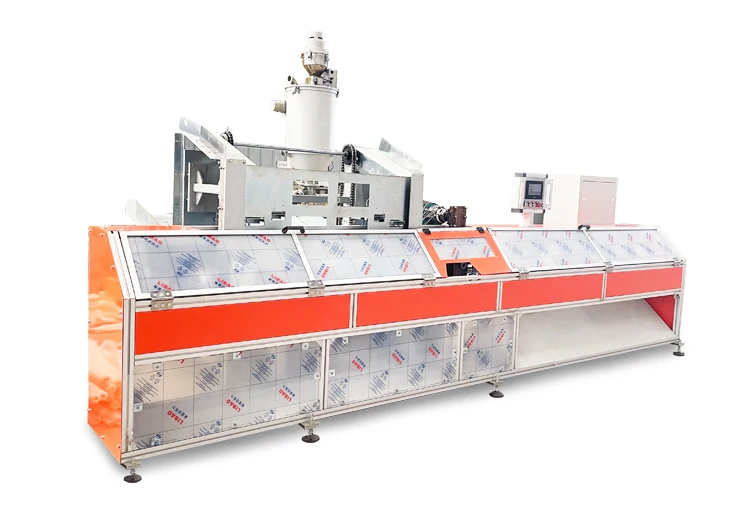

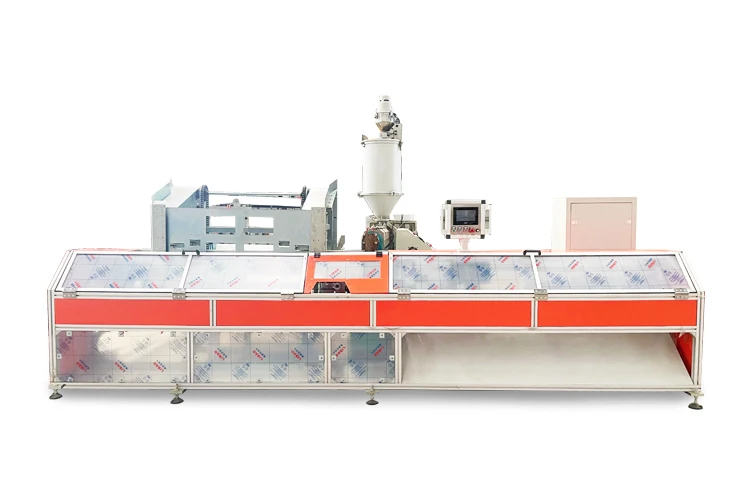

brush paint roller winding machine factory price
1. Power supply: 380V/50Hz
2. Power: 8kw
3. Air pressure: Mpa 0.5-0.7MPa
4. Efficiency: 280~300 tubes/hour
5. Control mode: PLC & servo system
6. Heating method: PP hot melt adhesive
7. Feeding length: (customized according to customer requirements)
8. Inner diameter of wool sleeve: 15mm~48mm (customized according to customer requirements)
9. Suitable pipe material: PP
10.Equipment size: 4500mm*1000mm*1800mm (length * width * height)
The paint roller winding machine uses hot melt adhesive.
The paint roller winding machine operation process is briefly described as following:
1. The PVC pipe for brush is fed from the feeding silo, and is transported to the buffer silo by the circulating elevator.
2.The buffer silo is equipped with 2 sets of gate mechanisms to ensure that only one pvc pipe is dropped each time the material is unloaded.

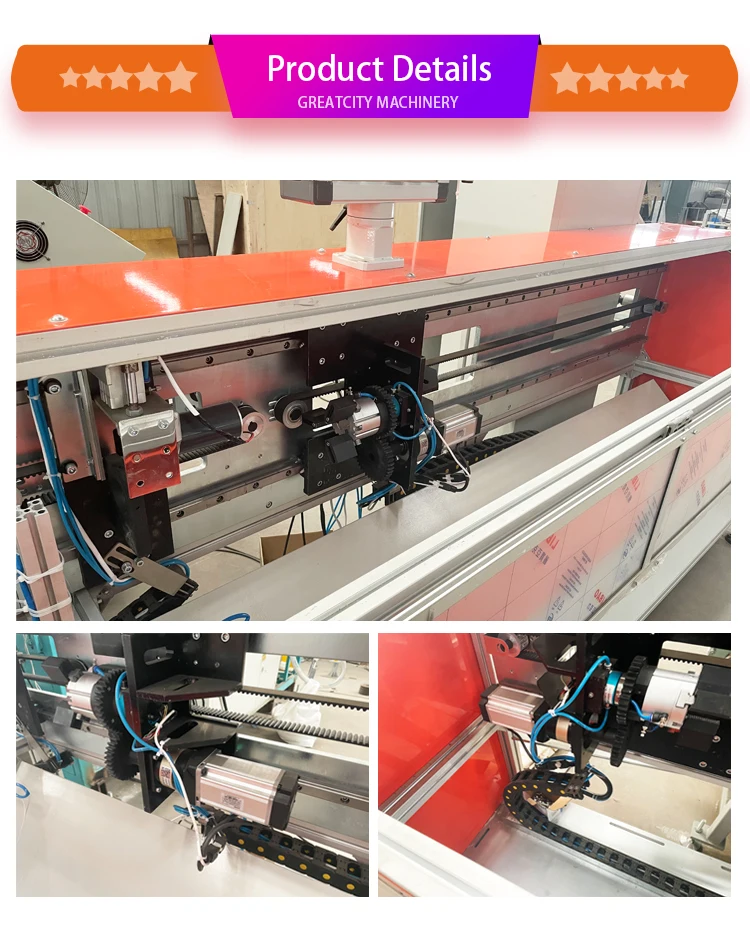

The main parts of the paint roller winding machine:
5 sets servo motor drive devices
supplemented by high -precision linear slide rails and the positioning is accurate
pushing mechanism(including rotation mechanism and ferry mechanism)
cutting mechanism(including cutter mechanism and ferry mechanism)
pulling mechanism(including rotating mechanism and ferry mechanism)
PVC pipe follow-up mechanism
hot melt adhesive extruder
flannel feeding rack
finished brush roller feeding trolley
Founded in 1998, Xingtai Judu Technology Co.,ltd specialized in manufacturing all kinds of machinery. Our products now include 3D wire bending machine,2D wire bending machine, bucket handle machine, paint roller machine, thread rolling machine,CNC stirrup bending machine and so on. At the same time, we can produce according to our customers request. These products have been exported to the USA, Germany, Pakistan and Australia. We have 20 machine designer, 50 engineers and 300 workers. Our factory located in Xingtai, Hebei province, in a district known as machinery hometown, occupying an area of 30,000 square meters. We have more than 100 sets of equipments, which are operated by 300 workers. We also have a highly qualified technical team engaged in developing new items and dealing clients customized orders. Our annual export amount is over USD9,000,000. Having developed more than 500 kinds of machinery in the past 20 years, we are marketing all series under our brand. Working in line with the principle of " integrity, quality, service" we have already obtained ISO certification, meanwhile, all products meet the requirements of CE standards, with good quality, our products enjoy a high reputation among all clients, having cooperate with many famous machinery importers. Our company promise: Reasonable prices, short production time and satisfactory after-sales service. We are confident in producing the best machinery and service, please feel free to contact with us if you are interested in any of our machinery. We are honored to have opportunity of establishing a business relationship with your esteemed company.
