1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution

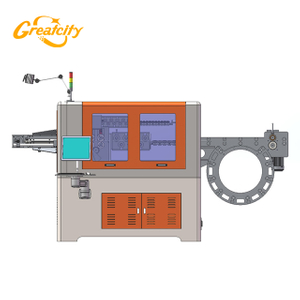

3d wire bending machine cnc technical specification
| model Configuration
| 1.5-6mm Wire forming machine | 4-12mm Wire forming machine | |
Electrical voltage | Three-phase four-wire + grounding wire | Three-phase four-wire + grounding wire | |
Straightening rounds | 8 group | 8 group | |
Number of wire feed wheels | 3 group | 4 group | |
Servo motor total power | 14KW | 17.5KW | |
Cutter cylinder | 7 Iron wire | 11 Iron wire | |
Oil pressure range | 0.3~0.6mpa | 0.3~1.0mpa | |
Hydraulic oil model | 46#68# | 46#68# | |
Applicable wire | Round wire, flat wire, square wire (for any material wire) | Round wire, flat wire, square wire (for any material wire) | |
Applicable wire range | 1.5~6mm Iron wire | 4~12mm Iron wire | |
physical dimension | 3000*1200*1950mm | ||
Circumference range | unlimited | unlimited | |
Storage | 100 Group data,1000 Action | 100 Group data,1000 Action | |
Wire feed speed | 80m/min | 60m/min | |
minimum bending speed | 600 turn /min,Angle ±180° | 600turn/min,angle ±180° | |
Direction of action | Internal mold - up / down movement, outer mold - up / down movement, 360 ° forward direction | Internal mold - up / down movement, outer mold - up / down movement, 360 ° forward direction | |
effectiveness | 15-30/min (as in the 200*200 box) | 10-20/min (as in the 200*200 box) | |
Bending accuracy | ±0.5mm | ±0.5mm | |
Wire feeding accuracy | ±0.2mm | ±0.2mm | |
Hydraulic system | Pressure regulating valve | Have | Have |
Pressure relief valve | Have | Have | |
The electromagnetic valve See | 2 | 4 | |
Pressure gauge | 1 | 1 | |
Oil circuit substrate | 1 | 1 | |
Cooling pump | Have | Have | |
server system | minimum torque | 50 m | 80 m |
minimum bend | 15 m | 30 m | |
Control panel | Touch screen | Touch screen | |
System control board | Yaqi | Yaqi | |
Head system | Special customization | ||
performance: | The mechanical action of the machine is controlled by the microcomputer to bend the bending speed of the program. The various commands issued are used to form various models and different specifications. The automatic control of the automatic feeding of the action control is straight and broken, and the bending is formed and the head is turned. Welding, stamping, combining various shapes with up to 500 motion settings | ||
3d wire bending machine cnc video on youtube :
https://youtu.be/1fV_j7FD7NY
https://www.youtube.com/watch?v=6Drg-Kn1G3Q
1. What is the voltage/phase for this 3d wire bending machine cnc ?
220V 50Hz/single phase ,380V 50Hz/three phase ,
also can made as the clients’ need
2. Can you make the logo or company name on the products or package?
Sure. customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
3. Do you have the products in stock?
Yes , We have some model products can supply to you.
4. Can we use English or other languages on the display screen?
Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages
5. How to choose a model?
First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.
6. How about After-sales service?
We freely send technicians to your country and 24 hours on-line service
