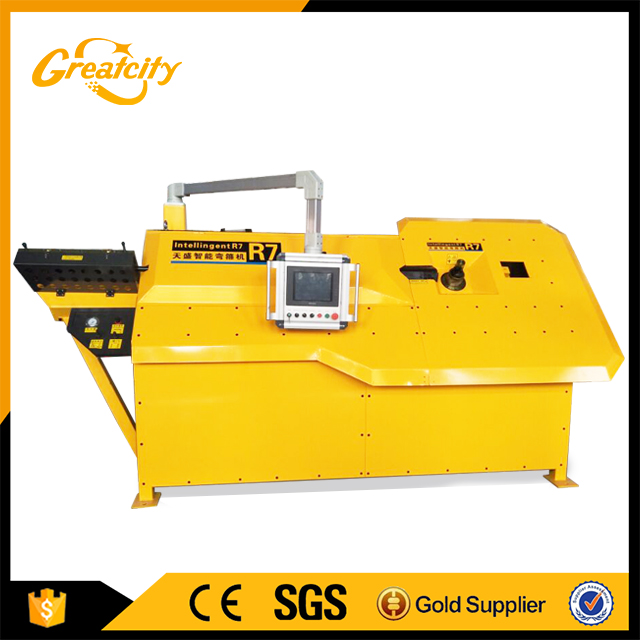

Auto CNC Rebar Stirrup Bending Machine for 4-10mm Iron Rebar

1.Bending and shearing mechanism: driven by imported servo motor, the bent arm can rotate and flex at high speed. The shearing mechanism completes the shearing action at high speed to ensure the bending accuracy of the steel bar.
2.Control system: This machine adopts foreign mature control system, high reliability. The control system has the function of fault identification and alarm.

Power:
Certification:
Scope:
Traction speed:
Application:
Quantity:
  • R7
  • Greatcity
  • 8462219000



CNC stirrup bending machine adopts CNC servo control system, can be done automatically reinforced straightening, cut to length, bending hoop, cutting and other process, the maximum diameter of 14mm can bend steel, continuous production of any planar shape of products, widely used in construction, a large steel plant and other fields. Further equipment since production improved after a few more perfect products and better meet the actual needs of steel processing.





Features for stirrup bending machine  R7:

1.    Integration automatic feed high precision wire structure.

2.    CNC control system, high precision, small error.

3.    The belt conveying means, failure rate, low maintenance cost.

4.    With two-way bend function, process a variety of shaped pieces.

5.    With large storage, can be processed nearly 500 different size artifacts.

6.    Double roller sync wire feed unit, wire feed is simple easy to operate, easy to learn.

7.    Works bevel design, not random wire straightening high efficiency.




R7 model CNC stirrup bending machine technical specifications:

MODEL

R7

process diameter of single rebar

4-10mm

process diameter of double rebar

4-8mm

max bending angle

180

max towing speed

60m/min

max bending speed

800

length accuracy

1mm

angular accuracy

1

processing quantity

2

power

21kw

steel processing shape

150type

working temperature

-5-40

weight

1980kg

dimension

3300*1000*1980mm


CNC stirrup bending machine  video link on youtube :
https://www.youtube.com/watch?v=npwgnHDCwX4&t=3s


R7弯箍机_01


steel bar bending machine _06 (7)

steel bar bending machine _06 (8)

steel bar bending machine _06 (9)

cnc stirrup bending machine is widely used in construction, a large steel plant and other fields.

steel bar bending machine _06 (10)







steel bar bending machine _06 (1)

Packaging: strong standard export  wooden case packing.

                   You can by sea or train or truck

                   We have our own farwarder. We can check the delivery information timely.

                   You can also use forwarder by yours.

                   We will contact with him ASAP.

Delivery time: 5-7 days after receiving the deposit.


R7弯箍机_06

R7弯箍机_05

Xingtai Greatcity(JUDU) machinery manufacturing Co.LTD is located in the historical industrial zone,HEBEI province.Founded in 1999,we are a professional manufacturer of series of CNC stirrup Bending Machine and rolling machine.For tewnty years in development,our company has always been adhering to credit the first bst quality in after sale service,innovations,self-improvement,adhere an independent intellectual property right as the core of scientific and technological innovation.the current bending machine rebar and horizontal lathes for the company's main product are sold throughout the country,some products exported to Asia,Africa,and other countries and regions,we are abide by integrity and innovation,entrepreneurial spirit,relying on leading research and development capabilities efficient manufacturing,stable quality and good service to meet the needs of our customers at home and abroad,the company has now passed the ISO9001:2000 international quality management system certification.
