Z28-315
Greatcity
8462419000
1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.
2.hydraulic small thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This threaded bold machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return .
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
GREATCITY brand thread rolling machine price can rolling many threads.
The below photos are parts of samples.
And can customized any type thread & full thread roller and partical thread roller.
For example:
1 1/2 "----- 8 UN
2" ---- 4.5 UNC
3/4 " --- 10UNC
1 1-2 -----6 UNC
3/4" ---- 16 UNF
M24*3
M30*3.5
M36*4
M42*4.5
3/4" -- 10 UNC
1"---8 UNC
1 1/4" --7 UNC
1 1/2" --6 UNC

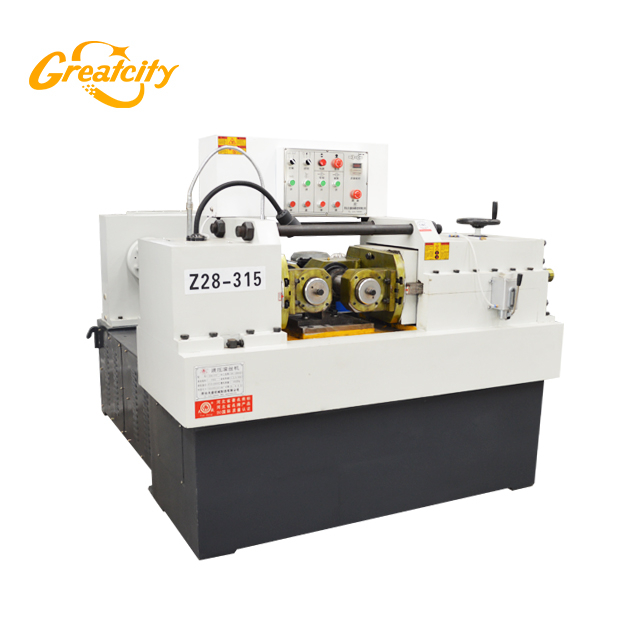

Z28-315 model rebar hydraulic small thread rolling machine technical parameters:
| Model | Z28-315 |
| Object part for rolling diameter | Ø8-110mm |
| Object part for rolling thread range | 0.5-8mm |
| Inner dia. of roller wheels | Ø75mm |
| Width of both wheels | 50-120mm |
| Dia. of two roller wheels | Ø170-220mm |
| Max feeding power | 300Kn |
Hydraulic auto-feeding time regulation scope | 0.1-99.9 |
Mechanical transmission motor | 15kw/1450r/min |
Hydraulic cease time regulation scope | 5.5kw/1450r/min |
Cooling electric pump | 120w |
Outer sizes | 2150*1800*1600mm |
Weight | 4500kg |
Z28-315 model hydraulic small thread rolling machine detailed show :
https://www.youtube.com/watch?v=D_t1gnynkCs
We are a professional manufacturer of hydraulic small thread rolling machine. We have been manufacturing machines for some Top Construction Group from Spain, Korea and Germany since the year of 2010. Our company has got independent import and export rights. Thus, we can distribute several kinds of machine to clients globally. Some of our products have got European CE, FDA, ISO9001:2001, ISO13485:2003 and other certifications.
♥ Our Principle: "Credibility Supremacy, and Customer First"
♥ Our Promise: "High quality products, and Excellent Service"
♥ Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"
♥ Our Aim: "Develop to be a leader in our industry in the world"
1. Do you have any warranty?
Yes, we have. Two years warranty on host machine is given. Six months free replacement warranty for spare parts.
2. How is your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone, webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
3. What is the Lead time of hydraulic small thread rolling machine ?
Goods can be sent within 45 days according to our production arrangement .
4. What kinds of payment terms are acceptable to you ?
We usually accept L/C at sight and T/T ( 50% in advance and 50% before shipment ) .
5. Do you have customers in our country?
We are the leader thread rolling machine supplier in China, also we have customers worldwide, such as America, Argentina, Brazil, Belarus, Bangladesh, Germany, Israel, India, and Italy.
