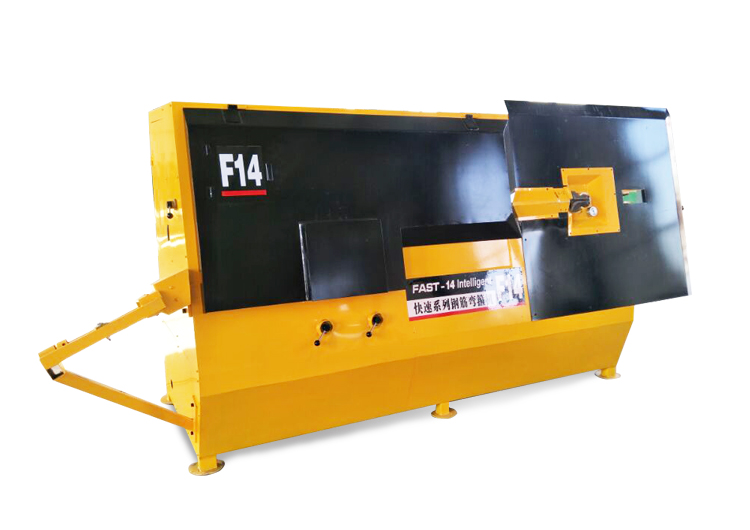

F14
Greatcity
8462219000
The introduction of European mature technology, automatic straightening, bending hoop, cut off, the real full automation, servo motor driven by foreign imports, top-brand PLC intelligent control, bending two bars at the same time, high production efficiency, finished stirrup technical parameters accurate. Only one or two workers can operate, saving a lot of labor.
Advantage
1, It can handle single round Φ5 ~ 14mm, double Φ5 ~ 12mm round coil rolled and hot-rolled steel and rebar;
2, Using CNC servo control system, to achieve fully automatic, uninterrupted bending molding process;
3, Steel straightening, length, bend hoop, cut off the perfect combination of steel processing to meet the accuracy requirements of a truly multi-purpose machine;
4, The maximum capacity of 1800 stirrups / hour, equivalent to more than one worker's production efficiency, while saving the maximum material;
5, Arbitrarily set the required processing size, a variety of graphics for your free choice.
MODEL | F14 |
process diameter of single rebar | 4-14mm |
process diameter of double rebar | 4-12mm |
max bending angle | 180 |
max towing speed | 120m/min |
max bending speed | 1000 |
length accuracy | 1mm |
angular accuracy | 1 |
processing quantity | 2 |
power | 380V |
steel processing shape | 150type |
working temperature | -5-40 |
weight | 2100kg |
dimension | 3400*1500*1800mm |
direction of processing | forward direction and opposite direction |
Type | Hydraulic |
video link of F14 automatic stirrup bender
https://www.youtube.com/@mengrita9445
The below words just part of our english operate steps.
After u order, we will supply full english operate steps and english CD.
The first line of the screen: graphic name, recipe number, alarm scrolling, the current time
Second line of the screen: multi-task screen, gallery screen, save graphics button, new graphics button, manual screen, parameter setting screen
The third line of the screen: graphic display area, graphic data area, single and double line switch button, data flip button
The fourth line of the screen: common parameters
Graph Name: The name of the graph saved in the library, easy to distinguish calls.
Recipe number: bending hoop machine action parameters, corresponding to the hoop machine wire feed per workpiece.
Alarm scrolling: real-time alarm
Multi-task screen: screen switch button, see the multi-task screen description
Gallery screen: screen button, see Gallery Gallery for details
New: Create new graphic data as prompted. Proceed as follows.
1. What is the voltage/phase for this automatic stirrup bender?
220V 50Hz/single phase ,380V 50Hz/three phase ,
also can made as the clients’ need
2. Can you make the logo or company name on the products or package?
Sure. customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
3. Do you have the products in stock?
Yes , We have some model products can supply to you.
4. Can we use English or other languages on the display screen?
Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages
5. How to choose a model?
First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.
6. How about After-sales service?
We freely send technicians to your country and 24 hours on-line service
Xingtai Greatcity Commercial Co.,Limited was founded in 1990.Specialized in machinery export,has been in this field for more than 20 years.The automatic stirrup bender are our advantages machine.These machines now export to all over the world such as Asia,Africa,South America,Australia and so on.
Our factory located in Xingtai, Hebei province,China where is the 2th biggest steel manufacture all over the world.We can assure the quality and competitive price.
We are currently seeking for global partners like agent and dealers.
