F14
Greatcity
8462219000

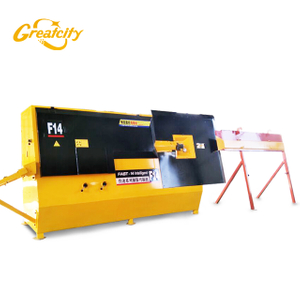

Features of bending rebar machine
1. This equipment adopts CNC controlling system;
2. Accomplish the functions of rebar's feeding, straighten, bending and cutting etc; can be processed in various sizes square, rectangle, triangle, polygon, etc.
3. Continuously bend various stirrup of plane figure;
4. Widely used in construction industry and rebar manufacturing enterprise;
5. Efficiency and accurate processing precision
MODEL | F14 |
process diameter of single rebar | 4-14mm |
process diameter of double rebar | 4-12mm |
max bending angle | 180 |
max towing speed | 120m/min |
max bending speed | 1000 |
length accuracy | 1mm |
angular accuracy | 1 |
processing quantity | 2 |
power | 380V |
steel processing shape | 150type |
working temperature | -5-40 |
weight | 2100kg |
dimension | 3400*1500*1800mm |
direction of processing | forward direction and opposite direction |
Type | Hydraulic |
video link of F14 bending rebar machine
https://www.youtube.com/@mengrita9445
1. What is the voltage/phase for this bending rebar machine?
220V 50Hz/single phase ,380V 50Hz/three phase ,
also can made as the clients’ need
2. Can you make the logo or company name on the products or package?
Sure. customer's logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.
3. Do you have the products in stock?
Yes , We have some model products can supply to you.
4. Can we use English or other languages on the display screen?
Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages
5. How to choose a model?
First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.
6. How about After-sales service?
We freely send technicians to your country and 24 hours on-line service
