Best Price 2D CNC Metal Steel Wire Bending Machine

metal wire bending machines without the need of the special mold, it greatly reduces the time and cost of the newly developed product; the stereoscopic molding can produce a three-dimensional shape line molding product; with an auxiliary lifting platform, it can further guarantee the production.
The stability and consistency of the product; the cutting knife can move downward to allow more space for product molding.
Diameter of wire:
Machine Type:
Material:
Applicable wire:
Control system:
Quantity:
  • ZD-2D-308
  • Greatcity
  • 8463300000

Best Price 2D CNC Metal Steel Wire Bending Machine



Product Application

metal wire bending machines


2D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Mitsubishi servo motor and screen display with Taiwan controller. It is combined with hydraulic system .




metal wire bending machines Application field :

1)Auto Industry area
2)Metal wire industry

3)Display table and cargo shelf
4)Furniture and Kitchen

5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft

elliptical irregular shape and various flat buttons, hooks.


ZD-2D-308 model metal wire bending machines technical specification:


Model

ZD-2D-308

number of  axles

3

processing wire dameter range

3—8mm (iron wire )

Number of feeder wheels (group)

3

Applicable wire

Round wire, flat wire  square wire (suitable for any wire material)

Storage

10,000 data, 300 actions in a group

minimum feeding speed(m/min)

22

Servo motor power of feeding shaft(kW)

2.6

Power of Servomotor for Cutter Shaft(kW)

2.0

Power of Folded Axis Servomotor(kW)

2.0

Direction of action

Internal and external die can be lifted and bended in both directions.

Feeding  accuracy(mm)

±0.1

minimum bending speed

800rmp/min,angle±180º

Capacity

20-24pcs/min,(200*200mm square shape)

operating system

32-bit Chinese and English (with upload and download function)

Input power supply

380V,50HZ/60HZ

weight (KG)

800

Dimension (length*width*height mm)

3000×1000×1400

metal wire bending machines  video link on youtube :

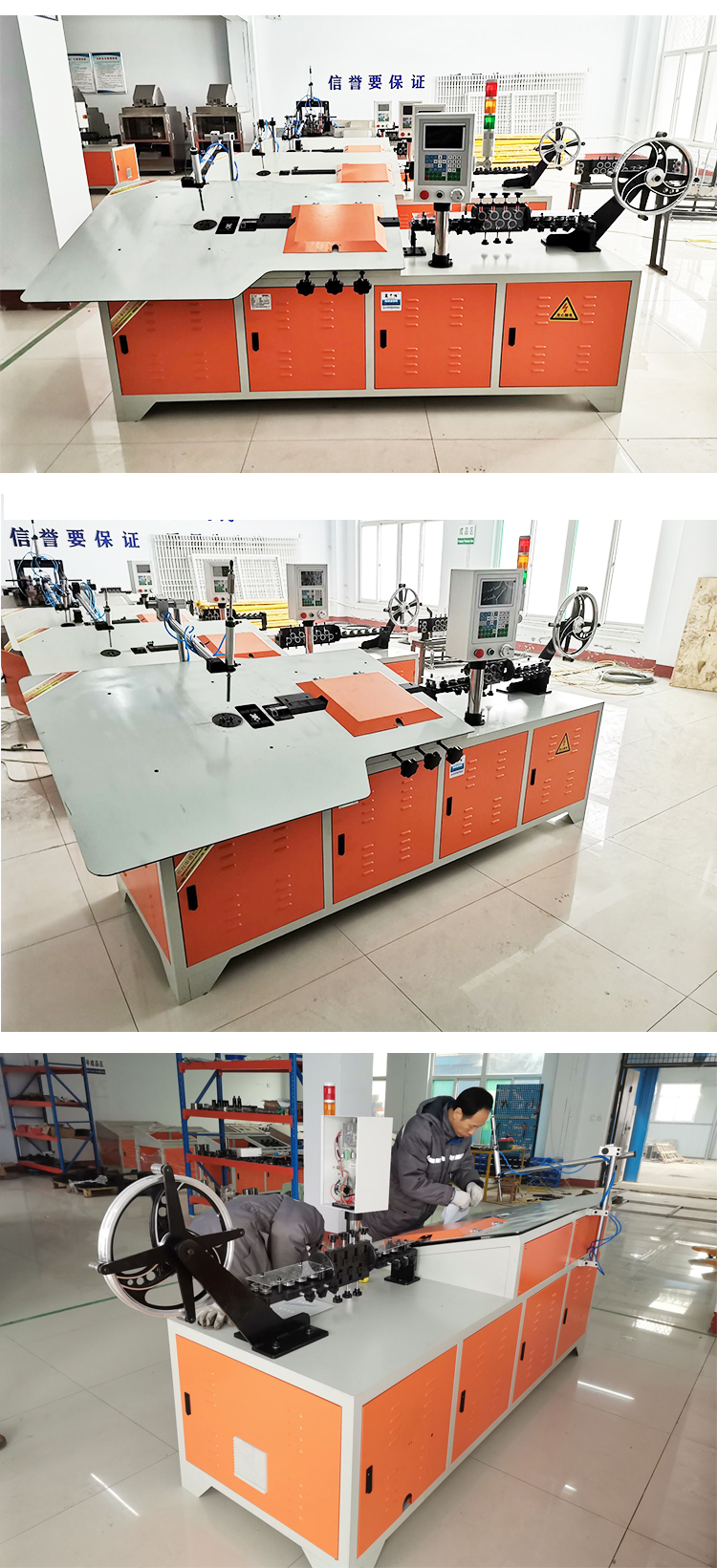

More detailed show for this model metal wire bending machines :



wire bending machine

wire bending machine

wire bending machine

wire bending machine

wire bending machine

2D wire bending machine


  206_08


Packaging information: standard export wooden case packing for metal wire bending machines

We have our own farwarder. and check the delivery information timely.

You can also choose your own forwarder . We will contact with him ASAP.

Delivery time: 7-15 days after receiving the deposit


308_11

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the metal wire bending machines, training how to use the machine.

* Engineers available to service machinery overseas.
