ZD-2D-308
Greatcity
8463300000

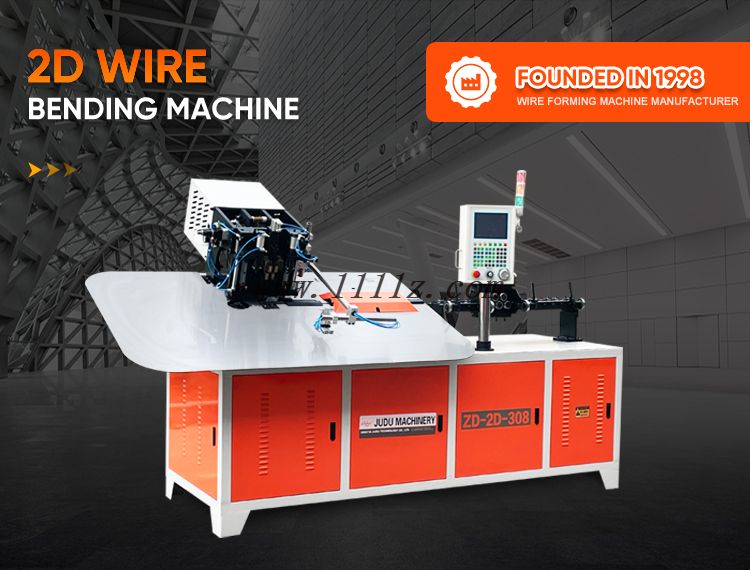

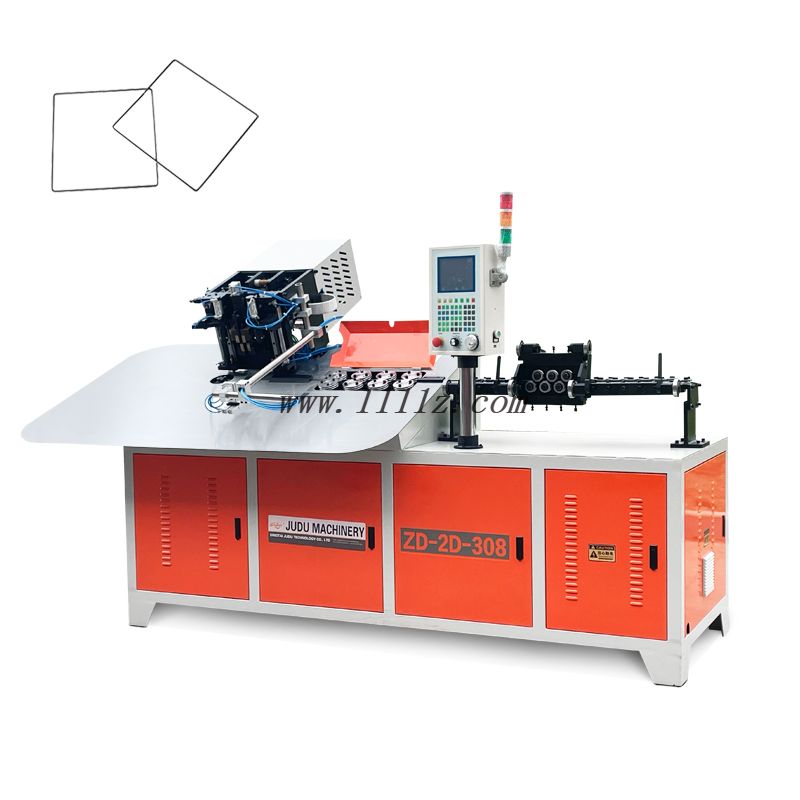

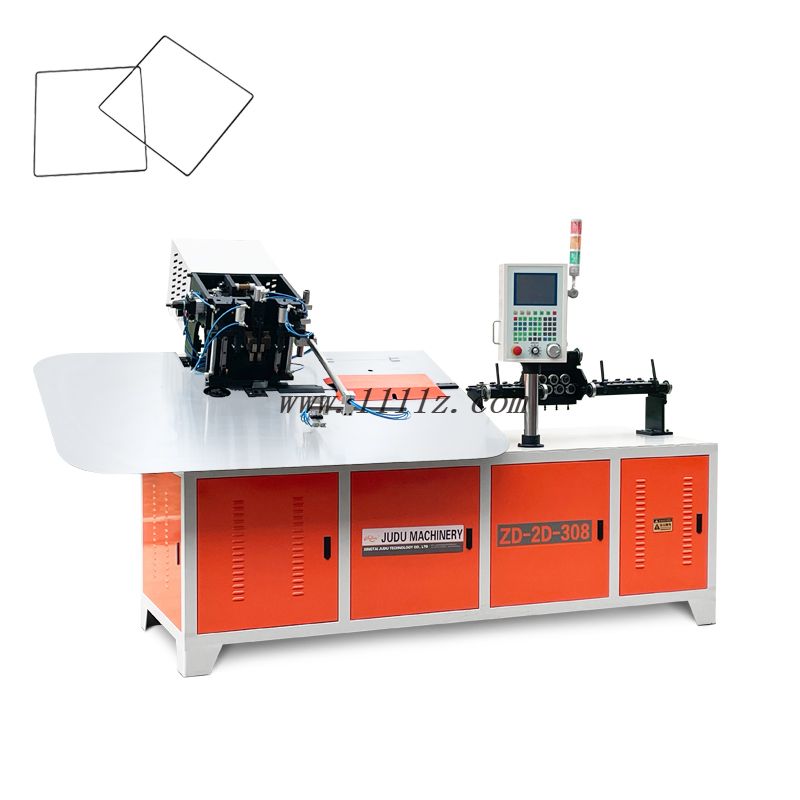

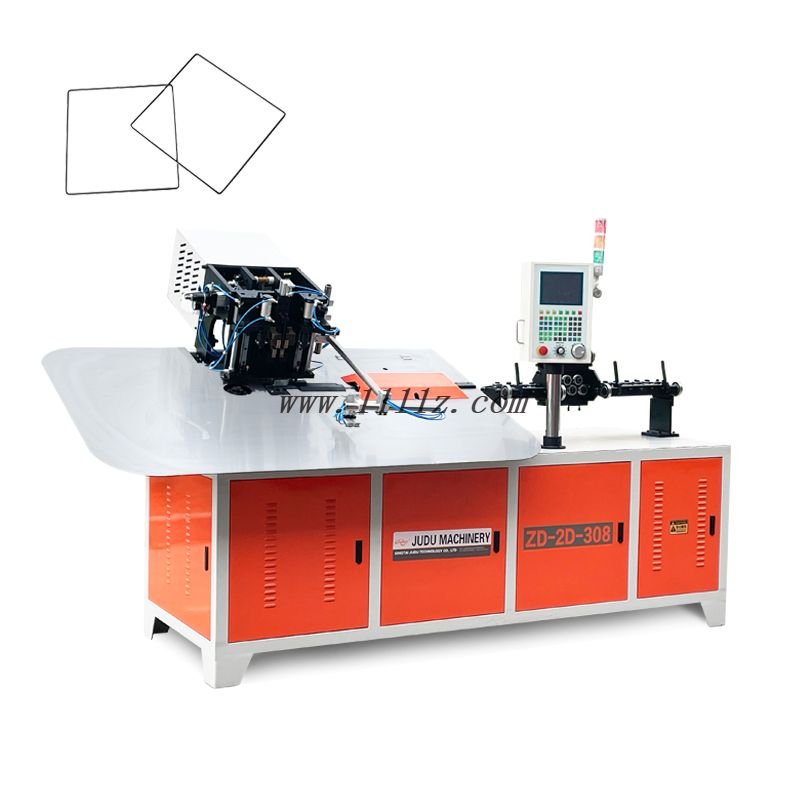

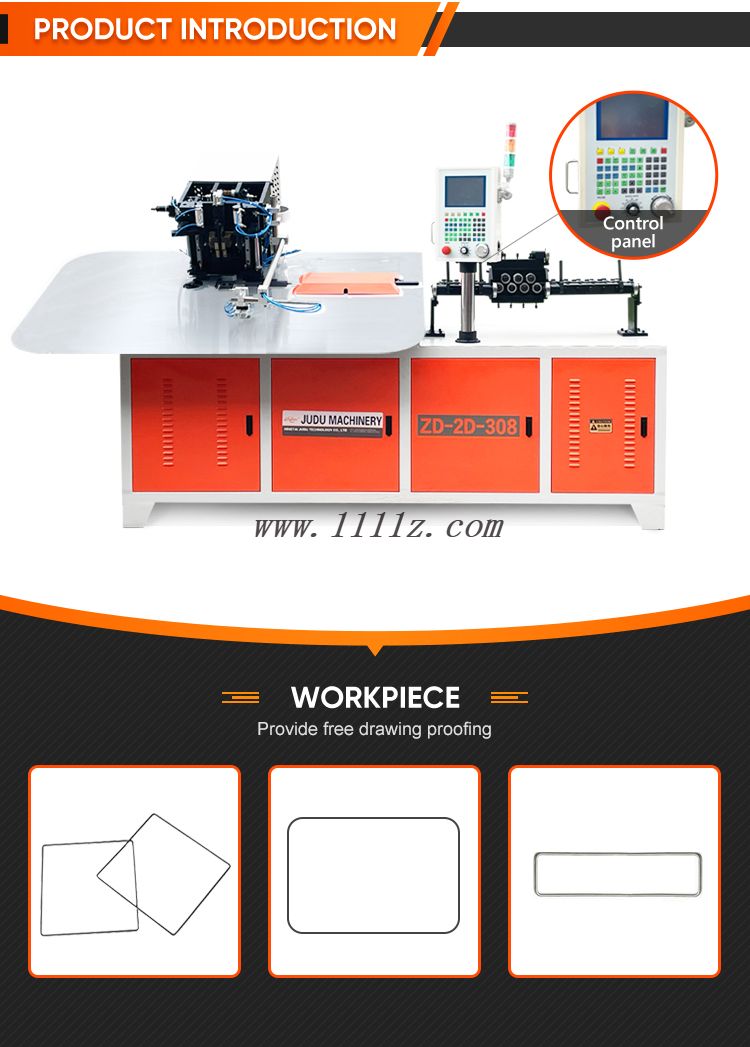

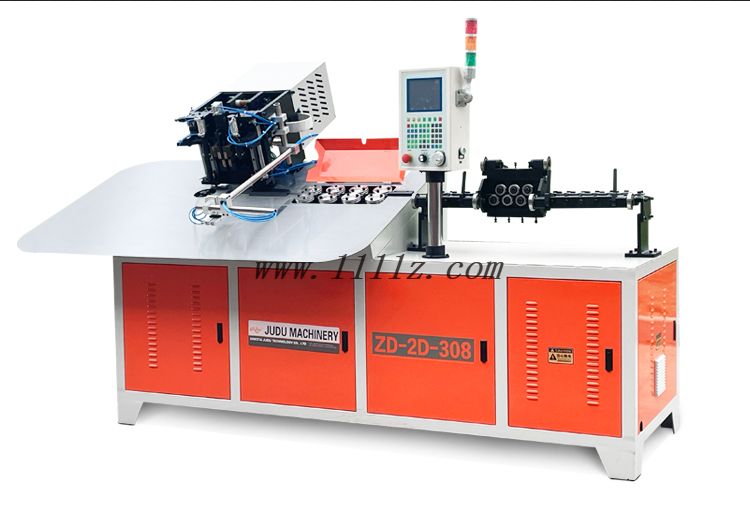

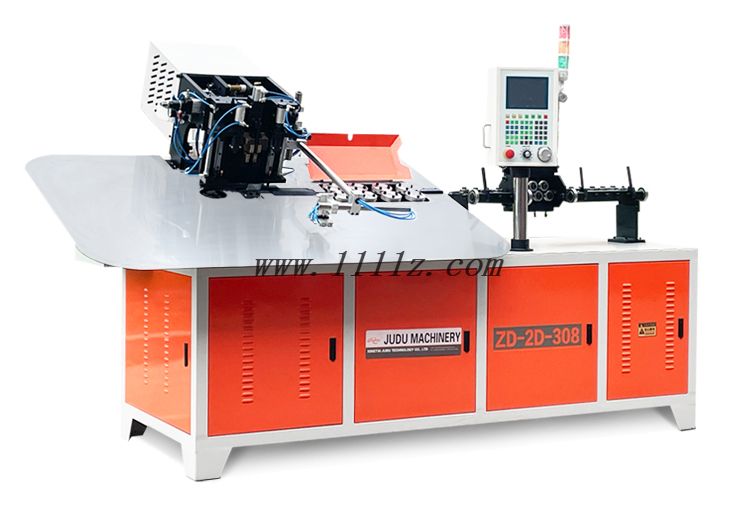

The company's newly developed precision 2D wire welding integrated forming machine adopts a new motion control system, equipped with excellent butt welding equipment, and realizes integration of forming and welding,and can be carried out simultaneously. Greatly improve the working efficiency of 2D machine.The wire forming mainframe is simpler to operate than the previous PLC control system, with high precision and large amount of information storage. The main machine and the butt welding equipment are perfectly combined to realize automatic forming.Butt welding, argon arc welding,welded iron wire and stainless steel wire can be realized.

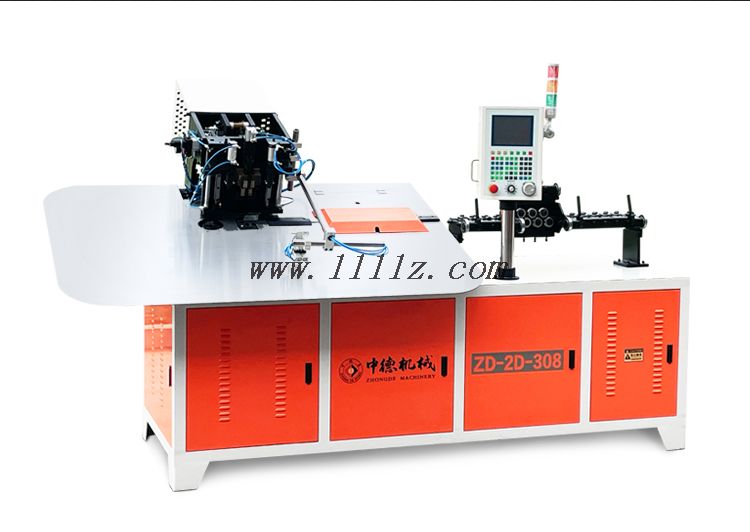

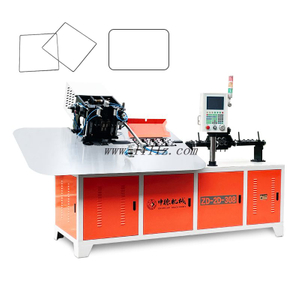

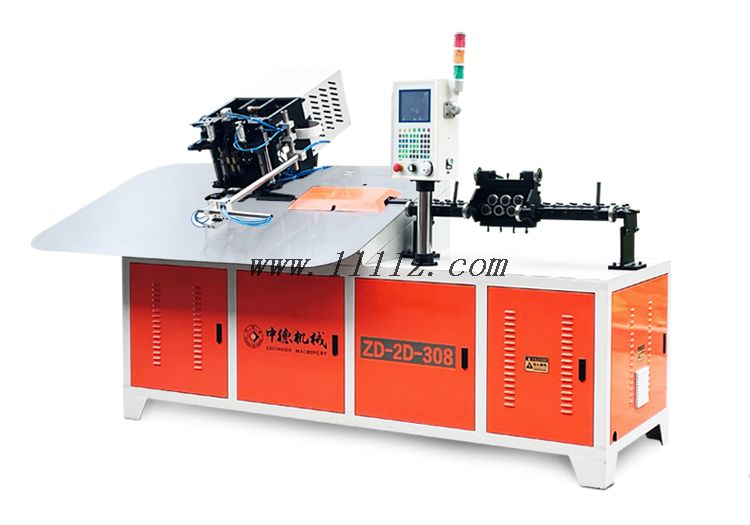

ZD-2D-308 model Wire Welding Integrated Forming Machine technical specification:
Model | ZD-2D-308 |
number of axles | 3 |
processing wire dameter range | 3—8mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 2.6 |
Power of Servomotor for Cutter Shaft(kW) | 2.0 |
Power of Folded Axis Servomotor(kW) | 2.0 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 800 |
Dimension (length*width*height mm) | 3000×1000×1400 |
Wire Welding Integrated Forming Machine video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa
1. A CNC automatic wire forming machine. The angled parts cooperate with each other to produce different products. The commissioning time is short. For new products, only simple adjustments are needed. After commissioning, the products can be produced and the delivery speed can be improved.
2. The function of the transfer line is made by the rotation of the wire itself, which makes the production of multi-angled corners more convenient, faster and faster.

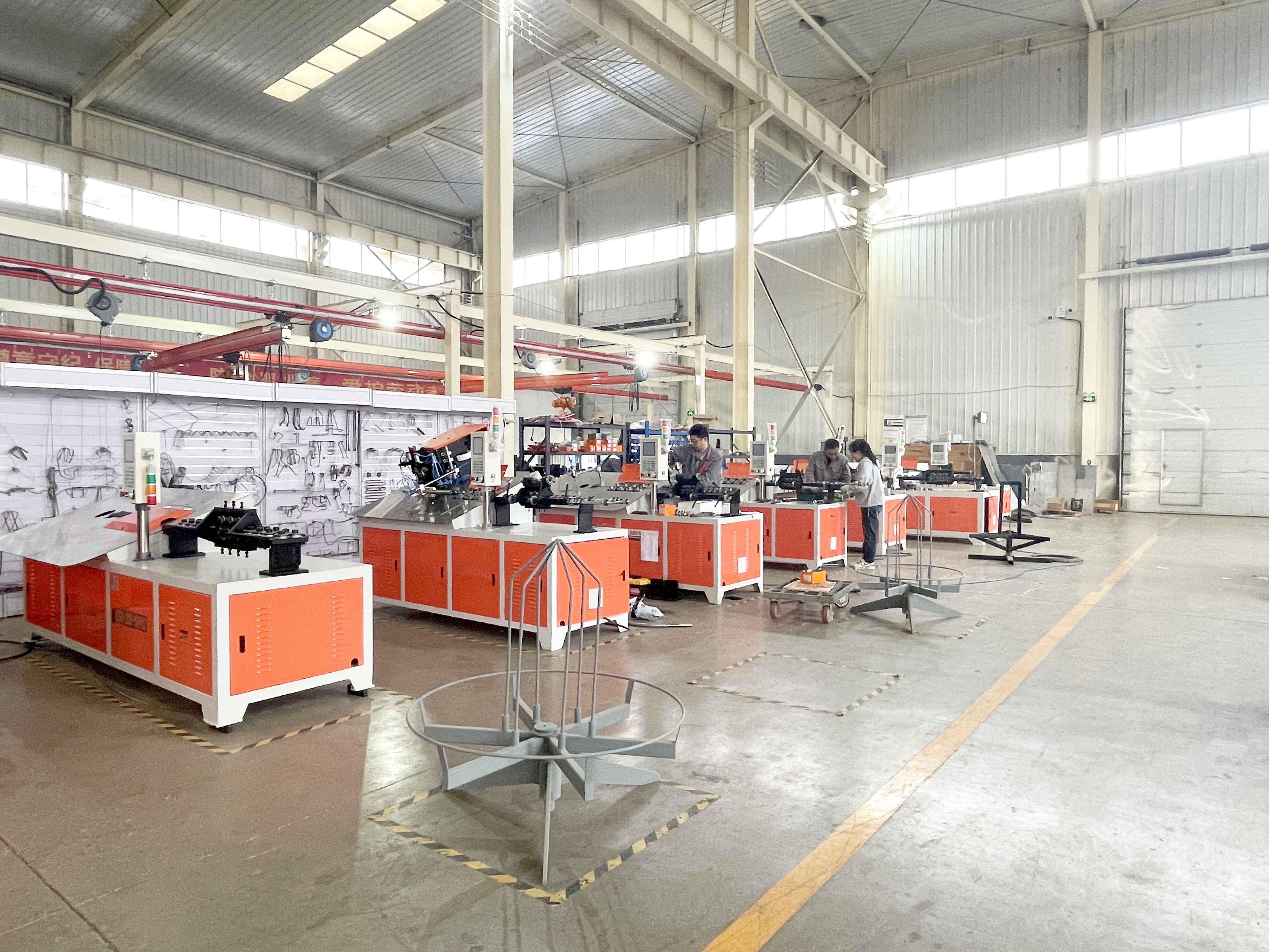

Hebei province Xingtai Machinery Manufacturing Co., Ltd. is located in all the major machinery manufacturing industry history, the company was founded in 1978, is a professional production and sales of two axis three axis rolling machine, rolling machine,wire welding bending machine enterprise.Thirty years of development, the company usually adhere to innovation, unremitting self-improvement, adhere to the independent intellectual property rights as the core of the scientific and technological innovation, the three roller rolling machine, hydraulic machine, necking machine, steel bending hoop machine as the main products of our company, the products are sold in various regions and are exported to Asia, Chinese Africa and other countries and regions.
Wire Welding Integrated Forming Machine
Packing : standardn export seaworthy wooden case
Shipment: about 3-7 days after receipt of the deposit.
By sea to your nearest port;
By air to your nearest airport;
Ship to the warehouse in China according to the customers’ requirement
1.what is steel wire bending machine Packaging?
Automatic Wire Welding Integrated Forming Machine Free fumigation safe Wood case package
2.what is MOQ?
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.
3.can we do OEM and ODM?
Can
changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable
4.what is your warranty?
Warranty 1 year
5.what time for delivery?
3 days for our own design.(motor:380v 50hz 3phases)
10 days for cusmoized model.
6.How do payment?
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable )
100%TT in advance (specially for air shipment or small amount)
