JD-2DWD
Greatcity
8463300000

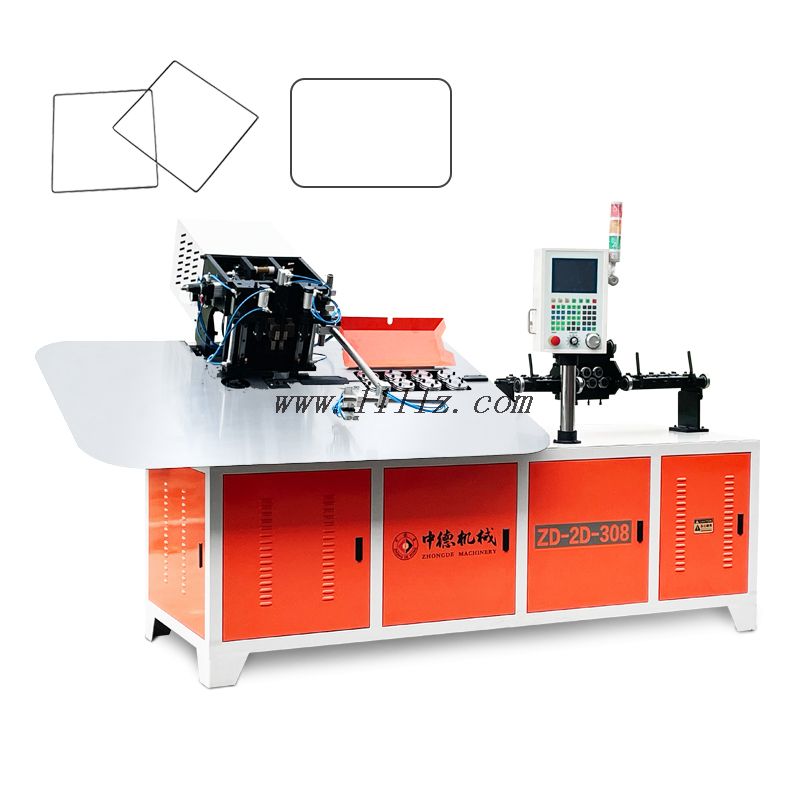

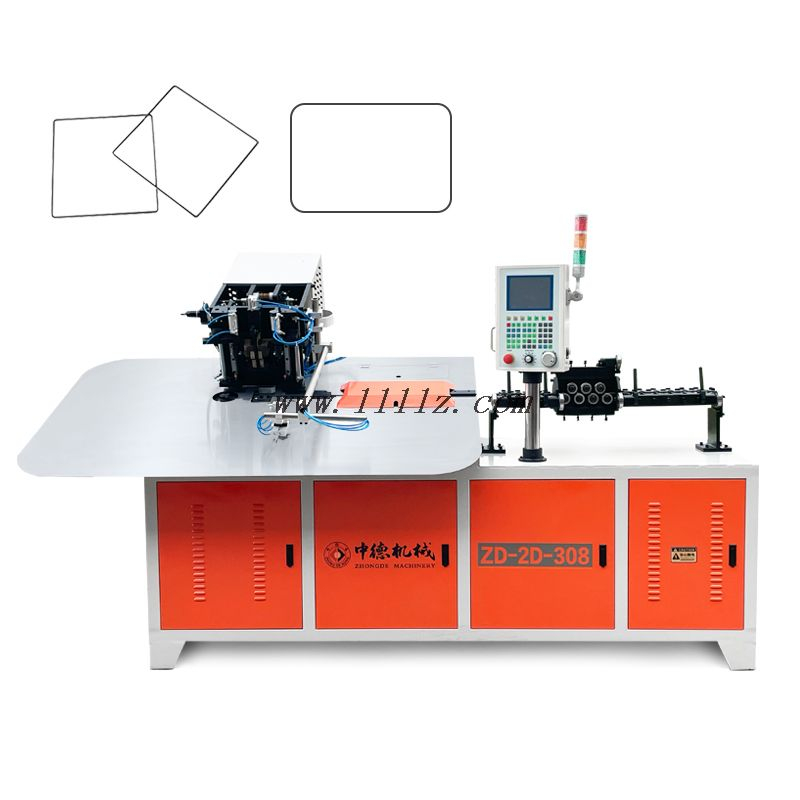

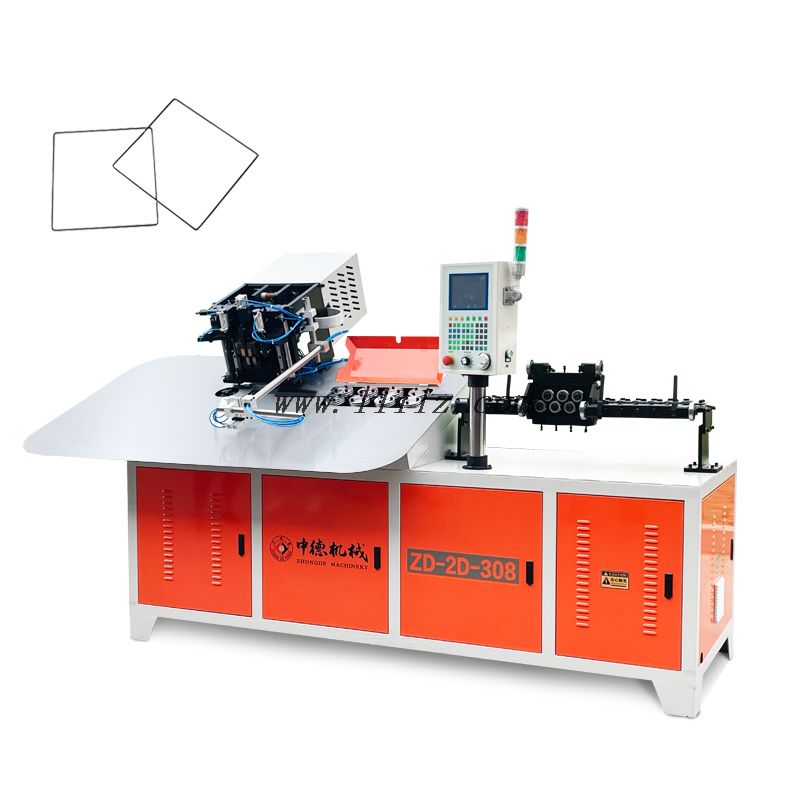

wire shaping 2d bender
The equipment design concept: the machine instead of artificial, without straightening materials, no need to open mold can be produced. You need to bend what shape, as long as it is in a plane, our machines can meet your needs.
Applicable to iron wire, steel wire, stainless steel wire and non-ferrous metal wire (round, square, flat wire), playing (bending) side, round, hexagonal, oval with irregular shape and a variety of flat buckle, all kinds of hook The
wire shaping 2d bender specification :
Model | ZD-2D-206 |
number of axles | 3 |
processing wire dameter range | 2—6mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 100 |
Servo motor power of feeding shaft(kW) | 1.5 |
Power of Servomotor for Cutter Shaft(kW) | 1.5 |
Power of Folded Axis Servomotor(kW) | 1.5 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 25-30pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 600 |
Dimension (length*width*height mm) | 2400×1000×1400MM |
wire shaping 2d bender video link on youtube
https://www.youtube.com/embed/rozbrffqWjo?si=v3fR8VUjz8mdo9V7
Packaging information: standard export wooden case packing for wire shaping 2d bender
We have our own farwarder. and check the delivery information timely.
You can also choose your own forwarder . We will contact with him ASAP.
Delivery time: 7-15 days after receiving the deposit
wire shaping 2d bender
1, the equipment selected sub-drive control high-precision servo motor wire, mechanical transmission selection of precision gear connection, always keep the same line feed accuracy and wire feed speed;
2, shear cylinder hydraulic station equipped with forced air-cooled radiator, double the extension of the hydraulic system components life;
3, the control system using PLC and text display connection, both convenient operation, but also to ensure the stability of the control system, and the design of the production of preset function control machine running.
FAQ
We have passed TUV certification and our company has passed the ISO9001:2000 international quality system certification, all products have acquired CE certificates of EU.
With more than 15 years experience of production and trade, some configurations of equipment can be adjusted according to your requirements .Good quality, reasonable price, best service and on-time delivery can be assured Confidently.
We are in xingtai City,Hebei province. It is about 150KM far from Qingdao port. If you want to be our agent, welcome to visit our factory and talk about this, or we fly to visit you.
