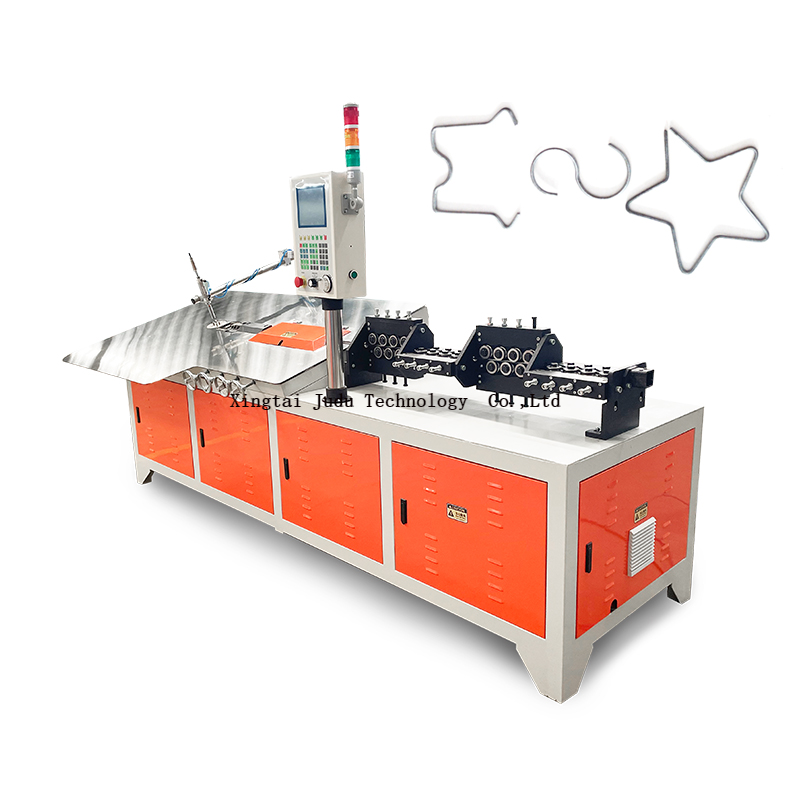

The wire bending machine 2d is a fully automatic machine for producing various two-dimensional die pressing parts. As long as the parameters are set on the operating table, the ideal two-dimensional shape can be bended at one time without additional dies. The line diameter range is suitable for 2.0-6.0 mm.
Processing wire, steel wire, stainless steel wire, non-ferrous wire (round, square, flat), bending, square, round, hexagonal, elliptical irregular shape and various flat buttons, hooks.
ZD-2D-308 model wire bending machine 2d technical specification:
Model | ZD-2D-308 |
number of axles | 3 |
processing wire dameter range | 3—8mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 2.6 |
Power of Servomotor for Cutter Shaft(kW) | 2.0 |
Power of Folded Axis Servomotor(kW) | 2.0 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 800 |
Dimension (length*width*height mm) | 3000×1000×1400 |
wire bending machine 2d video link on youtube :
https://www.youtube.com/watch?v=7aDpX4i4oNU
https://www.youtube.com/watch?v=eSYLgZhrblA
The process shapes of wire bending machine 2D
Our machine could process 500 kinds shapes
We are a professional manufacturer of wire bending machine 2d. We have been manufacturing machines for some Top Construction Group from Spain, Korea and Germany since the year of 2010. Our company has got independent import and export rights. Thus, we can distribute several kinds of machine to clients globally. Some of our products have got European CE, ISO9001:2001, ISO13485:2003 and other certifications.
♥ Our Principle: "Credibility Supremacy, and Customer First"
♥ Our Promise: "High quality products, and Excellent Service"
♥ Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"
♥ Our Aim: "Develop to be a leader in our industry in the world"
Our services
1.If you have any questions, reply within 24 hours.
2.Professional Manufacturing, Welcome to visit our website
3.Providing OEM/ODM
4.Good quality, fashionable style, reasonable price and competitive, fast delivery time
5.After-sales service:
All CNC two-dimensional steel wire bending machines will be strictly inspected for internal quality before packaging.
All products should be packed before shipment.
All our products have a one-year warranty period. We guarantee that they do not need to be repaired during the warranty period.
6.Fast delivery: sample order inventory, batch production 7-10 days
7.Payment: You can pay by T/T, L/C or Western Union Bank.
8.Freight Transportation: We have close cooperation with Maersk Line, CMA, Evergreen, COSCO, APL, CSCL and their agents, including DHL, TNT, UPS, FedEx, EMS, China International Air Cargo. You can also choose your own freight forwarder.
9. We promise our CNC wire bending machine price is best in the market with same service!
