ZD-2D-308
Greatcity
8463300000

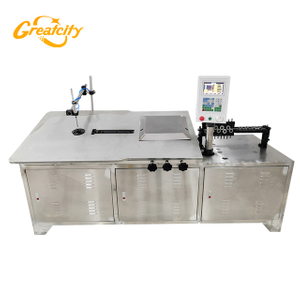

Short Delivery Automatic High Performance 2D Wire Forming Machine/CNC 2D Wire Bending Machine
Our 2d wire forming machine is to produce kinds of 2D wire forms expertly with high precision and fast speed. Adopts brand servo motor and screen display with top controller.
Advantages & Feature:
1. The error of full servo motor is smaller, the bending efficiency is higher, and the error is smaller than that of similar products of hydraulic press.
2. CNC operation is simpler and easier to learn than the same type of PLC products. Generally, the simple program can be edited by oneself within half an hour with elementary school education.
3. Because all the servo motors are used, there will be no hydraulic failure, the failure rate is lower, the scrubbing is more convenient, and the pollution caused by oil pollution will not occur.
wire forming machine Application field :
1)Auto Industry area
2)Metal wire industry
3)Display table and cargo shelf
4)Furniture and Kitchen
5)Hardware industry
6)Mattress, Sofa spring area
7)Architecture area
8)Hardware Artcraft
elliptical irregular shape and various flat buttons, hooks.
ZD-2D-308 model wire forming machine technical specification:
Model | ZD-2D-308 |
number of axles | 3 |
processing wire dameter range | 3—8mm (iron wire ) |
Number of feeder wheels (group) | 3 |
Applicable wire | Round wire, flat wire square wire (suitable for any wire material) |
Storage | 10,000 data, 300 actions in a group |
minimum feeding speed(m/min) | 22 |
Servo motor power of feeding shaft(kW) | 2.9 |
Power of Servo motor for Cutter Shaft(kW) | 1.0 |
Power of Bending Axis Servo motor(kW) | 1.8 |
Direction of action | Internal and external die can be lifted and bended in both directions. |
Feeding accuracy(mm) | ±0.1 |
minimum bending speed | 800rmp/min,angle±180º |
Capacity | 20-24pcs/min,(200*200mm square shape) |
operating system | 32-bit Chinese and English (with upload and download function) |
Input power supply | 380V,50HZ/60HZ |
weight (KG) | 800 |
Dimension (length*width*height mm) | 3000×950×1500 |
wire forming machine video link on youtube :
https://www.youtube.com/embed/eeFWDMDSQjc?si=97KvVO0vICSzl9aa
More detailed show for this model wire forming machine :
Packaging information: standard export wooden case packing for wire forming machine
We have our own farwarder. and check the delivery information timely.
You can also choose your own forwarder . We will contact with him ASAP.
Delivery time: 7-15 days after receiving the deposit
1. Help you choose the most suitable 2d wire bending machine .
2. Making the machine according to your request.
3. Give you machine’s details for help you use the machine more better.
4. 2 years warranty
5. Free repair whole using life without extra charge.
