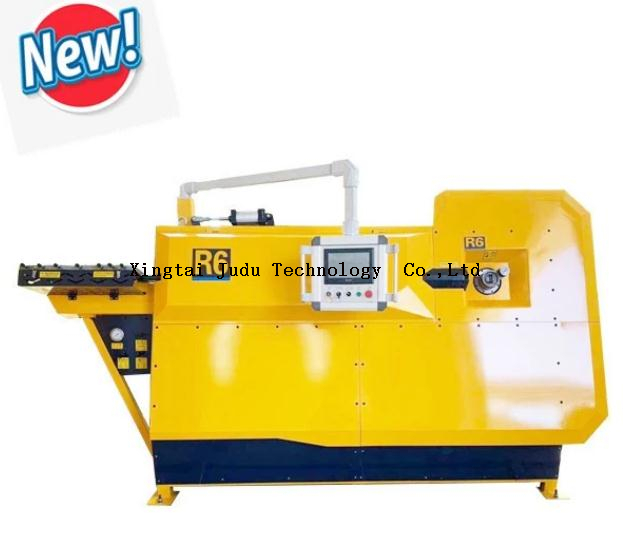

Simple CNC 2D Wire Forming Machine / Stirrup Bar Bender Wire Bending Machine

1.vertical straightening mechanism, can be individually straightened for each bar to ensure the quality of bar straightening;
2.All the rollers are made of high-quality alloy steel, high hardness, good wear resistance, and increase the service life;
3.There is a steel rebar control bar near the corner to ensure the bending quality.
Color::
Usage:
Raw Material:
Application:
Function:
Quantity:
  • R6
  • Greatcity
  • 8462219000

Features:


· This Stirrup Bar Bender Wire Bending Machine steel adopts servo controlling system;
· Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;
· Biggest bending diameter of rebar is 12mm;
· Continuously bend various stirrup of plane figure;
· Widely used in construction industry and rebar manufacturing enterprise;
· High efficiency and accurate processing precision.


Advantages:


1. Mechanical cut, more stable, no failure
Not affected by the weather, bending fast.
2. Main frame material is 10*10 square steel; National standard; High stability

3. More wheels on the Straighten plate, good effect
4.Feeding device is box structure, stable wire feeding, high speed, high precision
5. Can choose forward and reverse bending
6. Free air pump (air compressor)
7. Variety of species for choose. High-end, mid-range, low-end.


Motors brand: ALPHA
Controller brand : Kinco
Electircal Components brand: CHAT and DELIXI





R6 Stirrup Bar Bender Wire Bending Machine technical specification:

Model

R6

Single bar diameter (mm)

5-10

Double bar diameter (mm)

5-8

Max bending angle ( °)

180

Max towing speed (m / min)

60

Max bending speed ( °/ sec )

800

Length accuracy (mm)

1

Angular accuracy  ( °)

1

Number of processing

2

Power (kw)

21

Shape processing (kinds)

500

Working temperature (℃)

-5 -- 40

Weight (kg)

1980

Dimensiion (mm)

3300*1000*1980

Average power(kw / h)

5




r6 stirrup bending machine customer visting - greatcity machinery

stirrup bending machine _08 (7)

stirrup bending machine _08 (8)

stirrup bending machine _08 (10)

stirrup bending machine _08 (11)

Stirrup Bar Bender Wire Bending Machine Characteristic:

1.The maximum bending diameter is 10mm.

2.With two-way bending function, you can process a variety of special-shaped pieces.

3.Double roller synchronous wire feeding device, into the wire is simple, easy to operate, easy to learn.

4.Engineering slope design, not chaos silk, high modulation efficiency.

5.With large storage space, you can process nearly 500 different specifications of the workpiece.



stirrup bending machine _08 (12)

Quality Guarantee

  • 12months Quality warranty period (after put into operation formally).

  • Provide technical guide for dust collector forever.

  • After Quality Warranty period, will provide the spare parts with cost price.

  • All the machines provided by our factory will be tested before ship.



R6弯箍机_05


Xingtai Greatcity judu CO., LTD is a leading exporter and supply chain service provider located in Xingtai City,Hebei Province. Now our latest product is Stirrup Bar Bender Wire Bending Machine. Our company combines development, design, production and sales. With 20 years of development, we adhere to innovation, self-improvement, on the way to independent intellectual property rights as the core of the road of scientific and technological innovation. Over the years it has been the favor by domestic and foreign consumers.



We are a professional manufacturer of rebar stirrup bend machine for nearly 20 years. We have been manufacturing machines for some Top Construction Group from Spain, Korea and Germany since Our company has got independent import and export rights. Thus, we can distribute several kinds of machine to clients globally. Some of our products have got European CE, FDA, ISO9001:2001 and other certifications.



Choose our product is your right decision.



R6弯箍机_04

FAQ:

Packaging
Stirrup Bar Bender Wire Bending Machine Free fumigation safe plywood case package.

MOQ
1set can be acceptable for trail order.
Over 3sets can have wholesale price. Welcome to join us as our sales agent in your market.


OEM and ODM
changing on design , color ,: acceptable(welcome)
develop on artwork and sketch : acceptable

QC
Third party inspection : acceptable
1 year guarantee for quality problems


Delivery time:
3 days for our own design.(motor:380v 50hz 3phases)
10 days for cusmoized model.

Payment :
TT, 30% deposit ,70% before shippment.
L/C at sight (high bank charge, not suggest , but acceptable )
100%TT in advance (specially for air shipment or small amount)

Available shipment by :
Nearest is FOBxingang
