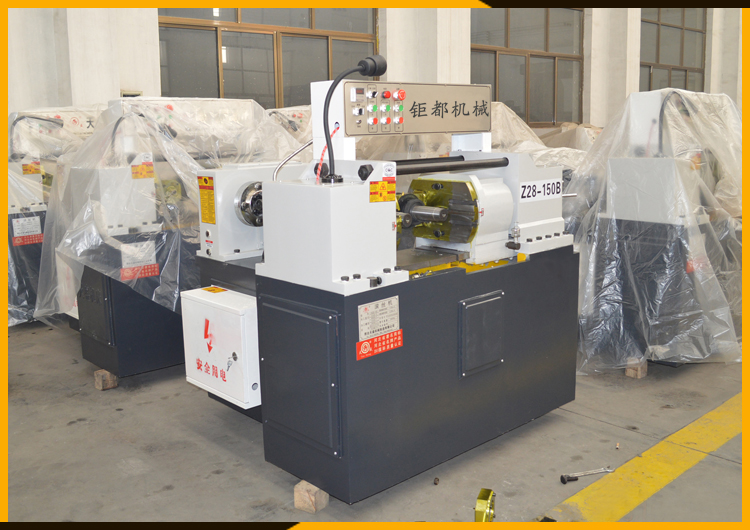

Z28-150B
Greatcity
8462419000
Overview
High-quality nuts and bolts making machine , steel bar thread rolling machine
For logistic cost or shipping freight, pls contact for discuss !
Main Features
The steel bar thread rolling machine for making anchor bolt is mainly used for processing precision standard parts of thread and high strength,including regular thread,trapezoid thread and modulax thread.The objective material to be processed inchcde carbon steel ,alloy steel and nonferrous metal with elongation over 10% and tensile strength less than 100kgf/mm²

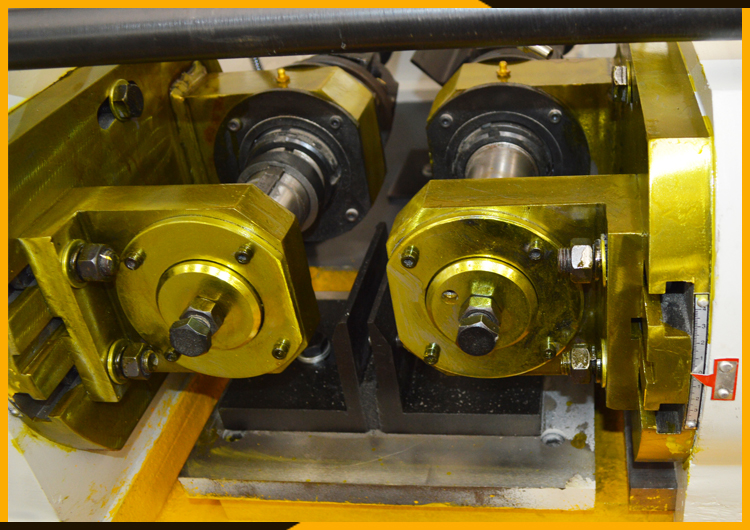

1.Two spindle of the machine rotates synchronously in the same direction .Right spindle feed motion in the horizontal direction under the rolling drive.Two rolling wheels make the work as required and other thread shape by rolling.
2.This steel bar thread rolling machine is mainly composed of an organism, rotating box, fixed spindle seat , a movable spindle seat, hydraulic system and electrical parts etc.
3.The fixed seat and the movable seat main function is installing the screw rolling wheel and adjusting the rolling wheel tooth.
4.This steel bar thread rolling machine is a hydraulic power system, it is mainly to make the active spindle seat to feed and return
5.The two spindle seat adjust center respectively.Angle of table axis can be adjusted in the plus or minus 3 degrees.Each shaft to feed the workpiece can be determined according to the parameters of workpiece and mechanical properties of materials.
Technical Parameter of steel bar thread rolling machine
Z28-150 steel bar thread rolling machine | |||
Pressure of Roller max | 160KN | Rotary Speed of Main Shaft | 36/47/60/78(r/min) |
Working Dia | Φ3-Φ56mm | Feed Speed of Movable shaft | 5mm/s |
OD of Roller | Φ120-Φ170mm | Thread Length | No Limit |
BD of Roller | Φ54mm | Main Power | 4KW |
Roller Width max | 100mm | Hydraulic Power | 2.2KW |
Dip Angle of Main Shaft | ±5° | Weight | 1750±50kg |
Center Distance of Main shaft | 120-240mm | Szie | 1520*1400*1130mm |
steel bar thread rolling machine video link on youtube
https://www.youtube.com/watch?v=PJHxY6FLL4Y

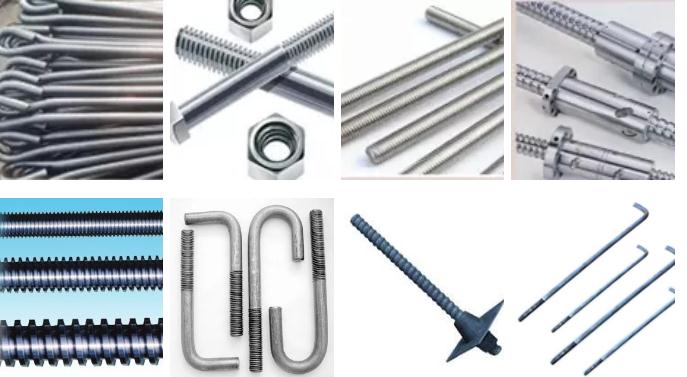

Finished workpiece show of steel bar thread rolling machine
High quality thread rollers for UNC / UNF / ASME / M thread
1.If you have any questions, reply within 24 hours.
2.Professional Manufacturing, Welcome to visit our website
3.Providing OEM/ODM
4.Good quality, fashionable style, reasonable price and competitive, fast delivery time
5.After-sales service:
All CNC two-dimensional steel wire bending machines will be strictly inspected for internal quality before packaging.
All products should be packed before shipment.
All our products have a one-year warranty period. We guarantee that they do not need to be repaired during the warranty period.
6.Fast delivery: sample order inventory, batch production 7-10 days
7.Payment: You can pay by T/T, L/C or Western Union Bank.
8.Freight Transportation: We have close cooperation with Maersk Line, CMA, Evergreen, COSCO, APL, CSCL and their agents, including DHL, TNT, UPS, FedEx, EMS, China International Air Cargo. You can also choose your own freight forwarder.
We are a professional manufacturer Xingtai Judu Technology Co.,Ltd of steel bar thread rolling machine. We have been manufacturing machines for some Top Construction Group from Spain, Korea and Germany since the year of 2010. Our company has got independent import and export rights. Thus, we can distribute several kinds of machine to clients globally. Some of our products have got European CE and other certifications.
♥ Our Principle: "Credibility Supremacy, and Customer First"
♥ Our Promise: "High quality products, and Excellent Service"
♥ Our Value: "Being Honesty, Doing the Best, and Long-lasting Development"
♥ Our Aim: "Develop to be a leader in our industry in the world"
Q:why choose our product?
A: Our products have good quality, durable, domestic and foreign customers trust and reputation Our products have good quality, durable, domestic and foreign customers trust and reputation
Q: What is the warranty time of steel bar thread rolling machine?
A: 3-5 years
Q: What is the payment term?
A:30% depost T/T, balance pay against copy of B/L, if CIF or CFR.
50% depost T/T, balance pay off when we finish the production.
Q:how to choose a suitable product?
A:Please tell our professor service team about youyr detailed requirement and using effect,we will recommend you our best suitable product.
Q:what should I tell you anything about product?
A:In order to provide you with the most suiltable for your product ,please provide your requirments to our professional service team
Exhibitions:

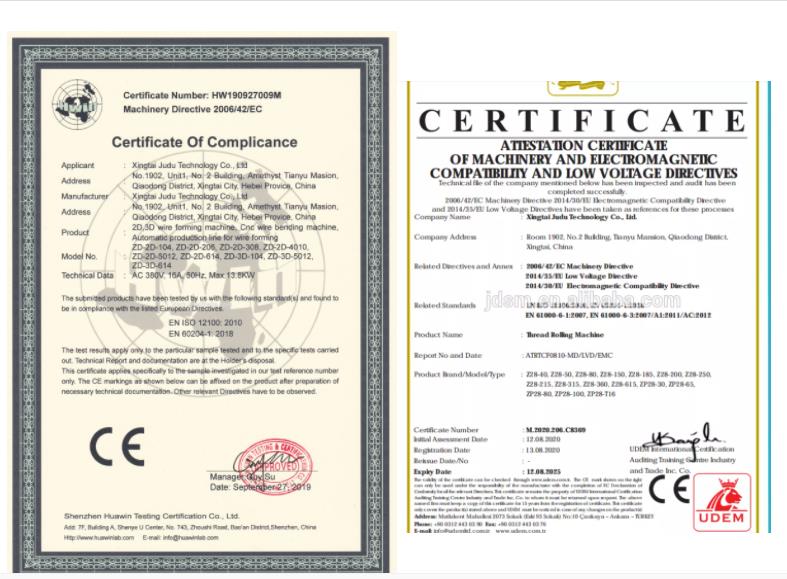

Certificates of greatcity machinery steel bar thread rolling machine
Why cooperate with us?
We view each customer as a relationship, not just a sale. Thank you for shopping here and please feel free to connect with us. Remember, if you have questions or concerns please just ask.
Call us any time, and let us help you find the right product for the right job!
