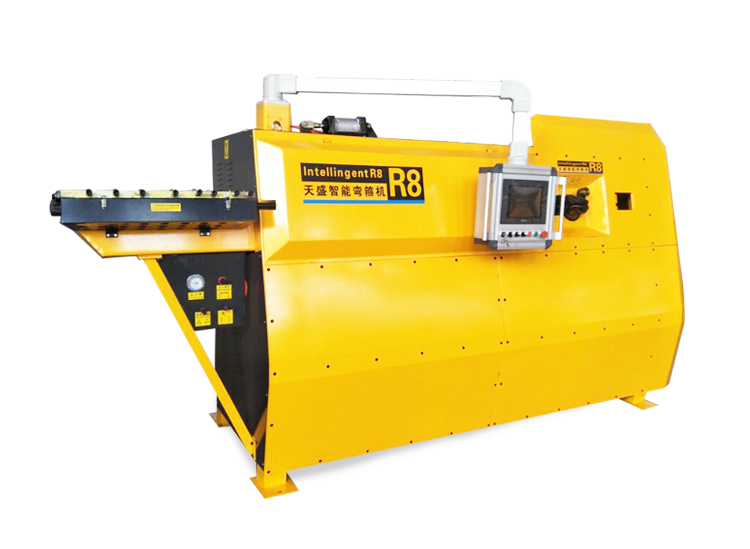

cnc automatic rebar stirrup bending machine price

automatic stirrup bending machine Max bending diameter of rebar is 12mm
Continuously bend various stirrup of plane figure;
Widely used in construction industry and rebar manufacturing enterprise;
High efficiency and accurate processing precision.
Power:
Automation:
Automatic:
Material:
Usage::
Quantity:
  • R8
  • Greatcity
  • 8462219000

cnc automatic rebar stirrup bending machine price

Features:


· This automatic stirrup bending machine steel adopts servo controlling system;
· Automatically accomplish the functions of rebar's feeding, straighten, bending and cutting etc.;
· Biggest bending diameter of rebar is 12mm;
· Continuously bend various stirrup of plane figure;
· Widely used in construction industry and rebar manufacturing enterprise;
· High efficiency and accurate processing precision.


Advantages:


1. Mechanical cut, more stable, no failure
Not affected by the weather, bending fast.
2. Main frame material is 10*10 square steel; National standard; High stability

3. More wheels on the Straighten plate, good effect
4.Feeding device is box structure, stable wire feeding, high speed, high precision
5. Can choose forward and reverse bending
6. Free air pump (air compressor)
7. Variety of species for choose. High-end, mid-range, low-end.


Motors brand: ALPHA
Controller brand : Kinco
Electircal Components brand: CHAT and DELIXI




R8 automatic stirrup bending machine parameter :

Model

R8

Number of processing

2

Single bar diameter (mm)

5-12

Power (kw)

21

Double bar diameter (mm)

5-10

Shape processing (kinds)

500

Max bending angle ( °)

180

Working temperature (°C)

-5 -- 40

Max towing speed (m / min)

130

Weight (kg)

2980

Max bending speed ( °/ sec )

1460

Dimensiion (mm)

3510*1510*2310

Length accuracy (mm)

1

Average power(kw / h)

7



R8 stirrup bending machine video link on youtube

https://www.youtube.com/watch?v=npwgnHDCwX4&t=3s

https://www.youtube.com/watch?v=PHpfnUS4mfo


Finshed product of automatic stirrup bending machine

Raw material is long straight ribbed bar ,to make Rectangle and square shape etc.

stirrup bending machine - greatcity machinery

cnc stirrup bending machine

automatic stirrup bending machine

stirrup bending machine price

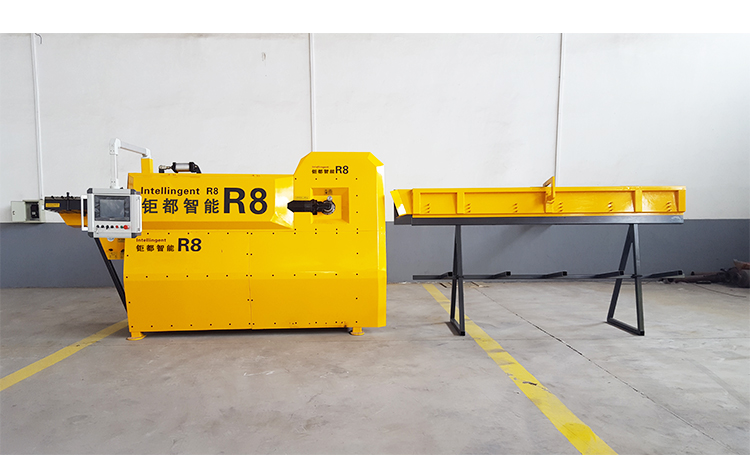

Also can make long bar hook ,then automatic stirrup bending machine need add long platform:

rebar stirrup bending machine (5)


R8 rebar stirrup bending machine (17)

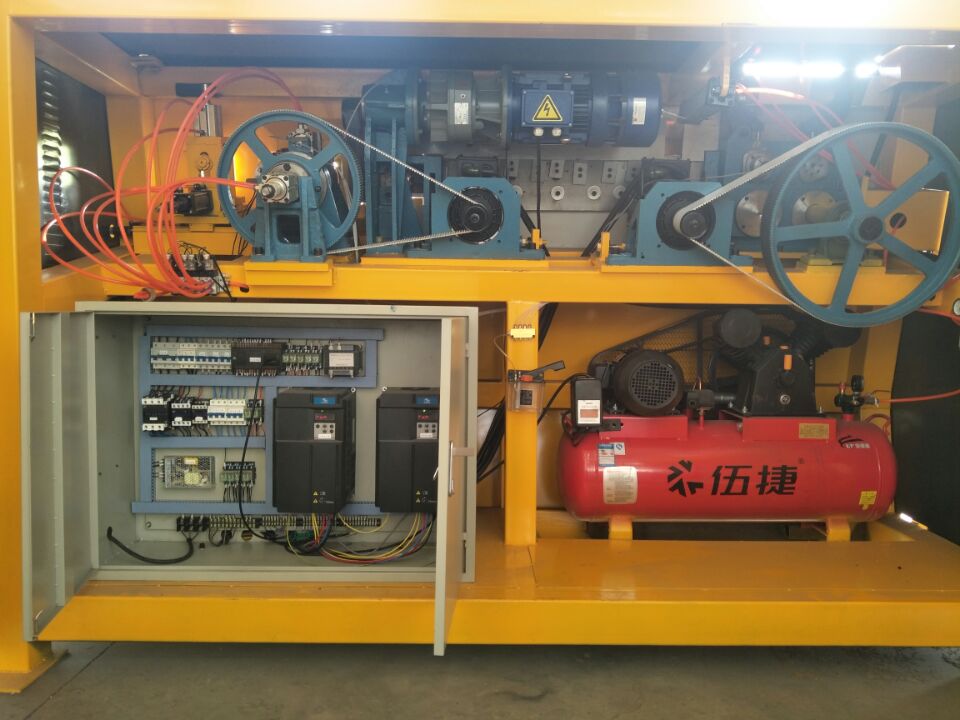

back detailes pictures of R8 automatic stirrup bending machine:


cnc stirrup bending machine

The feeding Straightening wheel of  R8 automatic stirrup bending machine:



R8 rebar stirrup bending machine (13)

R8 automatic stirrup bending machine with auto collector

 R8 rebar stirrup bending machine (4)

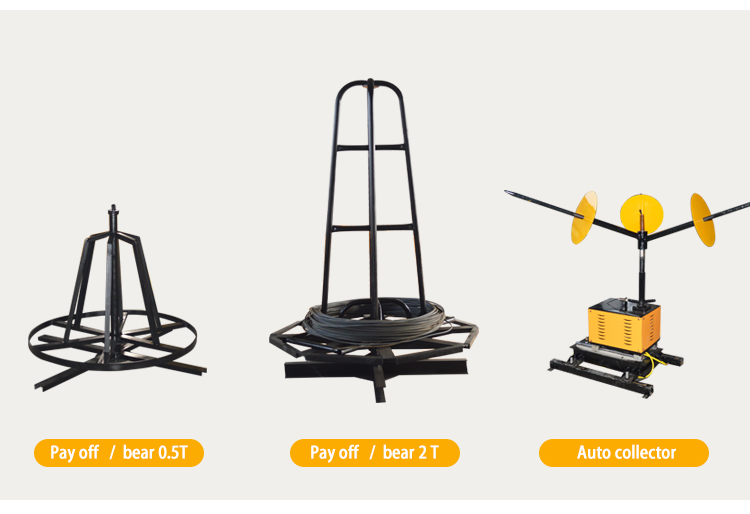

Pay off for automatic stirrup bending machine

pay off for stirrup bending machine

automatic stirrup bending machine packing in export standard wooden case

can shipping by sea or railway .

r7 stirrup bending machine shipping

Greatcity customer visit automatic stirrup bending machine 2d wire bending machine (8)

FAQ


1.What is the voltage/phase for this automatic stirrup bending machine ?



220V 50Hz/single phase ,380V 50Hz/three phase ,

also can made as the clients’ need



2. Can you make the logo or company name on the products or package?

Sure. customer's  logo or company name can be printed on products by stamping, printing, embossing, coating or sticker.



3. Do you have the products in stock?

 Yes , We have some model products can supply to you.



4. Can we use English or other languages on the display screen?

Yes, can. The system can achieve many languages, such as English, French, Russian, Spanish, and other languages

5. How to choose a model?

 First you could check with parameters list, or advise the requirement directly, then we would help you to choose a model accordingly.

6. How about After-sales service?

We freely send technicians to your country and 24 hours on-line service
